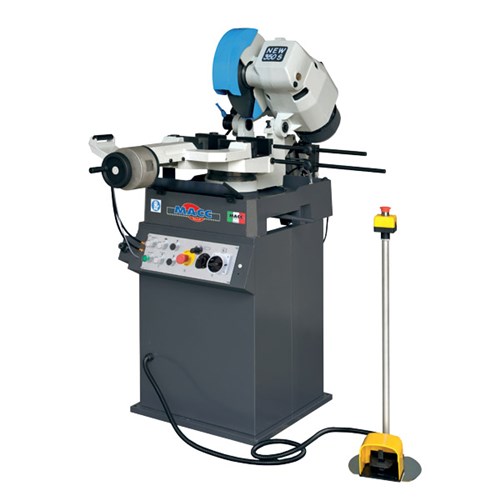

As per NEW350DV with addition of Semi-Auto Function.
Semi-Auto machine performs the following operations automatically during the cutting cycle:.
1. Vice closes and blade motor starts.
2. Cutting head downstroke.
3. Return of head and blade motor stop.
4. Vice re-opens.
Italian made quality.
Swivel head 45° left & right.
Quick locking double vice for burr free cutting.
Incorporated recirculating mechanical coolant system supplying coolant to both sides of the blade.
Adjustable material stop.
Compressor required to power vice.
Comes complete with blade & stand
Specifications:
- Motor: 3.2HP Three Phase 415V
- Blade Speed: 2 Speed 20 / 40rpm
- Blade Size: 350mm
- Blade Bore: 32mm
- Weight: 280kg
Cutting Capacity:
- 90° Solid Cylinder: 60mm / Hollow Cylinder: 110mm / Box: 100 x 100mm / Rectangle: 120 x 80mm
- 45°Solid Cylinder: 55mm / Hollow Cylinder: 80mm / Box: 80 x 80mm / Rectangle: 80 x 80mm
