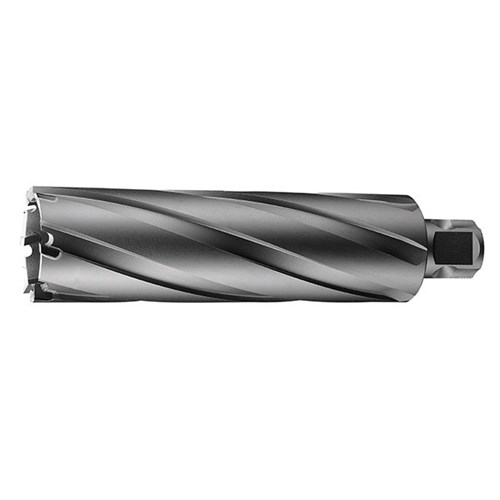

HOLEMAKER 100MM DEPTH MAXI-CUT TCT ANNULAR CUTTERS
As well as providing excellent life in mild steel, Tungsten Carbide Tipped Cutters are suitable for drilling difficult materials eg. stainless steel, Bisalloy and wear plate.
These Tungsten Carbide Tipped Cutters consist of an alloy metal body, and tungsten carbide cutting teeth. Due to this composition, these cutters are less susceptible to breakage than standard high speed steel cutters, especially in larger diameters and longer lengths.
The tungsten carbide cutting teeth can also be sharpened and replaced.
Diameter: 14 - 17mm
Depth of Cut: 100mm
Pilot Pin Diameter: 6.34mm
Shank Diameter: 3/4" (19.05mm)
6.34mm Pilot Pin to suit - Part# SP16009
Diameter: 18 - 60mm
Depth of Cut: 100mm
Pilot Pin Diameter: 8mm
Shank Diameter: 3/4" (19.05mm)
6.34mm Pilot Pin to suit - Part# SP16009
Diameter: 61 - 200mm
Depth of Cut: 100mm
Pilot Pin Diameter: 8mm
Shank Diameter: 1-1/4" (31.75mm)
8mm Pilot Pin to suit - Part # SP18100
Diameter: 1" (25.4mm)
Depth of Cut: 4"
Pilot Pin Diameter: 8mm
Shank Diameter: 3/4" (19.05mm)
8mm Pilot Pin to suit - Part # SP18100
HOLEMAKER 100MM DEPTH MAXI-CUT ANNULAR CUTTER SELECTION CHART
