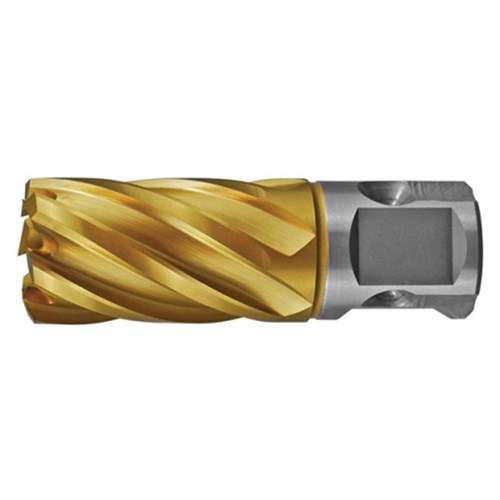

HOLEMAKER 25MM DEPTH GOLD SERIES ANNULAR CUTTERS

Product Code: HOLEANGOLD25

ex GST
(Each)
Qty Each (inc GST) Each Save %
Stock Availability
Pack Quantity
1
Increase value Decrease value
Technical Specifications
Brand Holemaker
Description

Holemaker 25MM DEPTH GOLD SERIES ANNULAR CUTTERS


TITANIUM NITRIDE COATING

The Titanium Nitride coating significantly increases the tool life by providing the following benefits:.

  •  Increased surface hardness to 85HRC.
  •  Ceramic surface, reducing friction by up to 30%.
  •  Especially resistant to cold welding.
  •  Suitable for cutting a wide range of materials.
M2AL HIGH SPEED STEEL MATERIAL

M2AL High Speed Steel is a high alloy material with a hardness of up to 67.5 HRC, designed for increased endurance of the cutting edge and tool life.

STEP HARDENED PROCESS

This state of the art manufacturing process produces cutters with extremely hard tooth tips for increased cutter performance, while maintaining a softer body which is less susceptible to breakage than standard high speed steel cutters.

MULTI-CUT GEOMETRY

Provides smooth and fast cutting, with decreased chatter. This also increases the cutters ability to remove swarf away from the cut, and helps to enhance centring.


FULLY GROUND WITH INTERNAL RELIEF

This feature allows Holemaker cutters to produce reamed quality, burr-free holes, and also helps to reduce torque and horsepower requirements.


UNIVERSAL SHANK

19.05mm (¾”) Universal Shank with 2 flat sections to suit most magnetic base drilling machines.
Depth Of Cut: 25mm
Pilot Pin Diameter: 6.34mm
Shank Diameter: 3/4"
Pilot Pin To Suit - SP16003

HOLEMAKER 25MM DEPTH GOLD SERIES ANNULAR CUTTER SELECTION CHART
Part No. Diameter Depth Of Cut Pilot Pin Diameter Shank Diameter
AT1225 12mm 25mm 6.34mm 3/4" (19.05mm)
AT1325 13mm 25mm 6.34mm 3/4" (19.05mm)
AT1425 14mm 25mm 6.34mm 3/4" (19.05mm)
AT1525 15mm 25mm 6.34mm 3/4" (19.05mm)
AT1625 16mm 25mm 6.34mm 3/4" (19.05mm)
AT16.525 16.5mm 25mm 6.34mm 3/4" (19.05mm)
AT1725 17mm 25mm 6.34mm 3/4" (19.05mm)
AT1825 18mm 25mm 6.34mm 3/4" (19.05mm)
AT1925 19mm 25mm 6.34mm 3/4" (19.05mm)
AT2025 20mm 25mm 6.34mm 3/4" (19.05mm)
AT2125 21mm 25mm 6.34mm 3/4" (19.05mm)
AT2225 22mm 25mm 6.34mm 3/4" (19.05mm)
AT2325 23mm 25mm 6.34mm 3/4" (19.05mm)
AT2425 24mm 25mm 6.34mm 3/4" (19.05mm)
AT2525 25mm 25mm 6.34mm 3/4" (19.05mm)
AT2625 26mm 25mm 6.34mm 3/4" (19.05mm)
AT2725 27mm 25mm 6.34mm 3/4" (19.05mm)
AT2825 28mm 25mm 6.34mm 3/4" (19.05mm)
AT2925 29mm 25mm 6.34mm 3/4" (19.05mm)
AT3025 30mm 25mm 6.34mm 3/4" (19.05mm)
AT3125 31mm 25mm 6.34mm 3/4" (19.05mm)
AT3225 32mm 25mm 6.34mm 3/4" (19.05mm)
AT3325 33mm 25mm 6.34mm 3/4" (19.05mm)
AT3425 34mm 25mm 6.34mm 3/4" (19.05mm)
AT3525 35mm 25mm 6.34mm 3/4" (19.05mm)
AT3625 36mm 25mm 6.34mm 3/4" (19.05mm)
AT3725 37mm 25mm 6.34mm 3/4" (19.05mm)
AT3825 38mm 25mm 6.34mm 3/4" (19.05mm)
AT3925 39mm 25mm 6.34mm 3/4" (19.05mm)
AT4025 40mm 25mm 6.34mm 3/4" (19.05mm)
AT4125 41mm 25mm 6.34mm 3/4" (19.05mm)
AT4225 42mm 25mm 6.34mm 3/4" (19.05mm)
AT4325 43mm 25mm 6.34mm 3/4" (19.05mm)
AT4425 44mm 25mm 6.34mm 3/4" (19.05mm)
AT4525 45mm 25mm 6.34mm 3/4" (19.05mm)
AT4625 46mm 25mm 6.34mm 3/4" (19.05mm)
AT4725 47mm 25mm 6.34mm 3/4" (19.05mm)
AT4825 48mm 25mm 6.34mm 3/4" (19.05mm)
AT4925 49mm 25mm 6.34mm 3/4" (19.05mm)
AT5025 50mm 25mm 6.34mm 3/4" (19.05mm)
AT5125 51mm 25mm 6.34mm 3/4" (19.05mm)
AT5225 52mm 25mm 6.34mm 3/4" (19.05mm)

4.70mm Pilot Pin to suit - Part# SP16001
6.34mm Pilot Pin to suit - Part# SP16003

Accessories

Holemaker SP16003 Pilot Pin 6.34MM x 77MM, TO SUIT 25MM DEPTH OF CUT CUTTERS SP16003 In Stock Low Stock Available to Order Please See Attributes Pack Quantity: 1
$20.00 ex GST (Each)
Increase value Decrease value
Holemaker SP16001 Pilot Pin 4.73MM x 77MM, TO SUIT 12-14MM X 25MM DEPTH OF CUT SP16001 In Stock Low Stock Available to Order Please See Attributes Pack Quantity: 1
$23.00 ex GST (Each)
Increase value Decrease value
