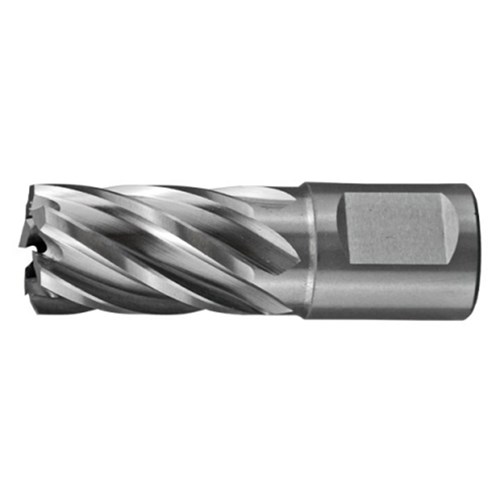

Holemaker® 25mm depth PRO-CUT POWDER STEEL Annular Cutters
Pro-Cut ASP® powder steel cutters offer incredible wear resistance & ductility.
ASP® steels are produced by powder metallurgy through a 3-step process:
gas-atomisation, hot isostatic pressing and post processing operations such as forging, rolling or drawing.
Suitable for drilling railway line, stainless-steel & hardened steels, where high wear resistance and lifetime are required.
• Incredible wear resistance
• Uniform micro-structure
• Less susceptible to breakage
Pilot Pin Diameter: 6.34mm
Shank Diameter: 3/4" (19.05mm)
6.34mm Pilot Pin to suit - Part#
SP16003
HOLEMAKER 25MM DEPTH PRO-CUT ANNULAR CUTTER SELECTION CHART
| Part No. |
Diameter |
Depth Of Cut |
Pilot Pin Diameter |
Shank Diameter |
| PC1225 |
12mm |
25mm |
6.34mm |
3/4" (19.05mm) |
| PC1325 |
13mm |
25mm |
6.34mm |
3/4" (19.05mm) |
| PC1425 |
14mm |
25mm |
6.34mm |
3/4" (19.05mm) |
| PC1625 |
16mm |
25mm |
6.34mm |
3/4" (19.05mm) |
| PC1825 |
18mm |
25mm |
6.34mm |
3/4" (19.05mm) |
| PC1925 |
19mm |
25mm |
6.34mm |
3/4" (19.05mm) |
| PC2025 |
20mm |
25mm |
6.34mm |
3/4" (19.05mm) |
| PC2225 |
22mm |
25mm |
6.34mm |
3/4" (19.05mm) |
6.34mm Pilot Pin to suit - Part# SP16003
