Holemaker® 25MM DEPTH SILVER SERIES HSS ANNULAR CUTTERS

25MM Depth of Cut (HOLEANSILVER25)

ex GST
(Each)
Qty Each (inc GST) Each Save %
Stock Availability
Pack Quantity
1
Increase value Decrease value
Technical Specifications
Brand Holemaker
Description

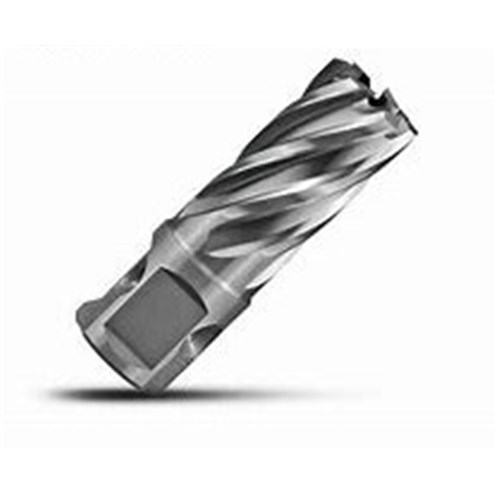

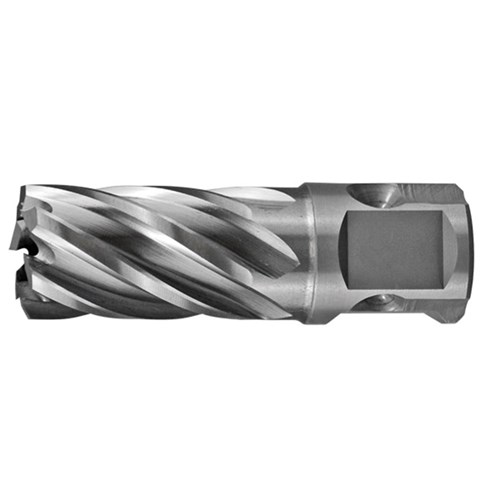

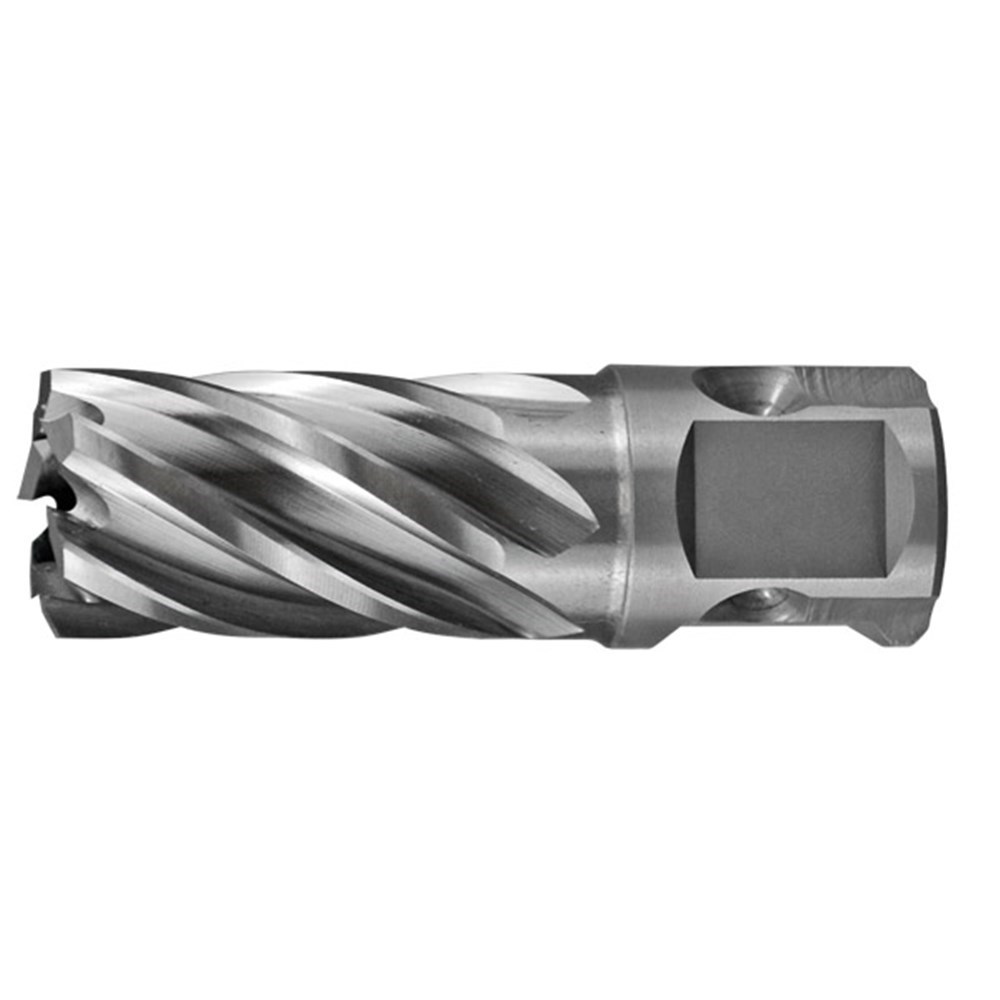

Holemaker 25MM DEPTH SILVER SERIES HSS ANNULAR CUTTERS


M2AL HIGH SPEED STEEL MATERIAL.
M2AL high speed steel is a high alloy material with a hardness of up to 67.5 HRC, designed for increased endurance of the cutting edge and tool life.

STEP HARDENED PROCESS.
This state of the art manufacturing process produces cutters with extremely hard tooth tips for increased cutter performance, while maintaining a softer body which is lesssusceptible to breakage than standard high speed steel cutters.

MULTI-CUT GEOMETRY.
Provides smooth and fast cutting, with decreased chatter. This also increases the cutters ability to remove swarf away from the cut, and helps to enhance centring.

FULLY GROUND WITH INTERNAL RELIEF.
This feature allows Holemaker cutters to produce reamed quality, burr-free holes, and also helps to reduce torque and horsepower requirements.

UNIVERSAL SHANK.
19.05mm (3/4"") universal shank for cutters up to and including 60mm diameter. Featuring 2 flat sections to suit most magnetic base drilling machines. Cutters of diameters 61mm and above feature a 31.75mm, 1-1/4" Weldon shank. M2AL high speed steel is a high alloy material with a hardness of up to 67.5 HRC, designed for increased endurance of the cutting edge and tool life.

Pilot Pin To Suit - SP16003

Holemaker 25MM DEPTH SILVER SERIES HSS ANNULAR CUTTERS Selection Chart
Part No. Diameter Depth Of Cut Pilot Pin Diameter Shank Diameter
AS1225 12mm 25mm 6.34mm 3/4" (19.05mm)
AS1325 13mm 25mm 6.34mm 3/4" (19.05mm)
AS1425 14mm 25mm 6.34mm 3/4" (19.05mm)
AS1525 15mm 25mm 6.34mm 3/4" (19.05mm)
AS1625 16mm 25mm 6.34mm 3/4" (19.05mm)
AS1725 17mm 25mm 6.34mm 3/4" (19.05mm)
AS1825 18mm 25mm 6.34mm 3/4" (19.05mm)
AS1925 19mm 25mm 6.34mm 3/4" (19.05mm)
AS2025 20mm 25mm 6.34mm 3/4" (19.05mm)
AS2125 21mm 25mm 6.34mm 3/4" (19.05mm)
AS2225 22mm 25mm 6.34mm 3/4" (19.05mm)
AS2325 23mm 25mm 6.34mm 3/4" (19.05mm)
AS2425 24mm 25mm 6.34mm 3/4" (19.05mm)
AS2525 25mm 25mm 6.34mm 3/4" (19.05mm)
AS2625 26mm 25mm 6.34mm 3/4" (19.05mm)
AS2725 27mm 25mm 6.34mm 3/4" (19.05mm)
AS2825 28mm 25mm 6.34mm 3/4" (19.05mm)
AS2925 29mm 25mm 6.34mm 3/4" (19.05mm)
AS3025 30mm 25mm 6.34mm 3/4" (19.05mm)
AS3125 31mm 25mm 6.34mm 3/4" (19.05mm)
AS3225 32mm 25mm 6.34mm 3/4" (19.05mm)
AS3325 33mm 25mm 6.34mm 3/4" (19.05mm)
AS3425 34mm 25mm 6.34mm 3/4" (19.05mm)
AS3525 35mm 25mm 6.34mm 3/4" (19.05mm)
AS3625 36mm 25mm 6.34mm 3/4" (19.05mm)
AS3725 37mm 25mm 6.34mm 3/4" (19.05mm)
AS3825 38mm 25mm 6.34mm 3/4" (19.05mm)
AS3925 39mm 25mm 6.34mm 3/4" (19.05mm)
AS4025 40mm 25mm 6.34mm 3/4" (19.05mm)
AS4125 41mm 25mm 6.34mm 3/4" (19.05mm)
AS4225 42mm 25mm 6.34mm 3/4" (19.05mm)
AS4325 43mm 25mm 6.34mm 3/4" (19.05mm)
AS4425 44mm 25mm 6.34mm 3/4" (19.05mm)
AS4525 45mm 25mm 6.34mm 3/4" (19.05mm)
AS4625 46mm 25mm 6.34mm 3/4" (19.05mm)
AS4725 47mm 25mm 6.34mm 3/4" (19.05mm)
AS4825 48mm 25mm 6.34mm 3/4" (19.05mm)
AS4925 49mm 25mm 6.34mm 3/4" (19.05mm)
AS5025 50mm 25mm 6.34mm 3/4" (19.05mm)
AS5125 51mm 25mm 6.34mm 3/4" (19.05mm)
AS5225 52mm 25mm 6.34mm 3/4" (19.05mm)

6.34mm Pilot Pin to suit - Part# SP16003

Accessories

Holemaker SP16003 Pilot Pin 6.34MM x 77MM, TO SUIT 25MM DEPTH OF CUT CUTTERS SP16003 In Stock Low Stock Available to Order Please See Attributes Pack Quantity: 1
$20.00 ex GST (Each)
