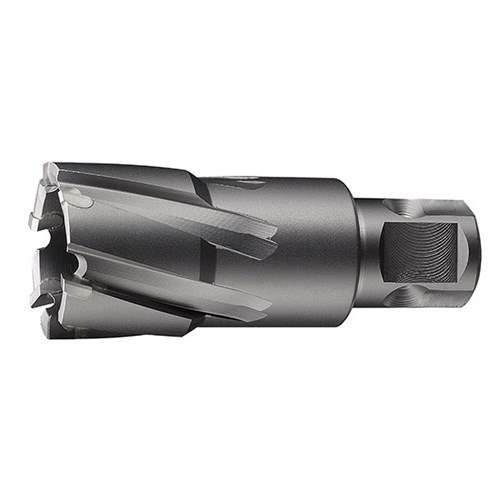

HOLEMAKER 35MM DEPTH TCT MAXI-CUT ANNULAR CUTTERS METRIC
As well as providing excellent life in mild steel, Tungsten Carbide Tipped Cutters are suitable for drilling difficult materials eg. stainless steel, Bisalloy and wear plate.
These Tungsten Carbide Tipped Cutters consist of an alloy metal body, and tungsten carbide cutting teeth. Due to this composition, these cutters are less susceptible to breakage than standard high speed steel cutters, especially in larger diameters and longer lengths.
The tungsten carbide cutting teeth can also be sharpened and replaced.
Diameter: 12 - 17mm
Depth of Cut: 35mm
Pilot Pin Diameter: 6.34mm
Shank Diameter: 3/4" (19.05mm)
Pilot Pin To Suit 14mm to 17mm Diameter - Part# SP16015
Diameter: 18 - 40mm
Depth of Cut: 35mm
Pilot Pin Diameter: 8mm
Shank Diameter: 3/4" (19.05mm)
Pilot Pin To Suit 18mm Diameter and Above - Part# SP18035
HOLEMAKER 35MM DEPTH MAXI-CUT ANNULAR CUTTER SELECTION CHART
| Part No. |
Diameter |
Depth Of Cut |
Pilot Pin Diameter |
Shank Diameter |
| MAX35-12 |
12mm |
35mm |
6.34mm |
3/4" (19.05mm) |
| MAX35-13 |
13mm |
35mm |
6.34mm |
3/4" (19.05mm) |
| MAX35-14 |
14mm |
35mm |
6.34mm |
3/4" (19.05mm) |
| MAX35-15 |
15mm |
35mm |
6.34mm |
3/4" (19.05mm) |
| MAX35-16 |
16mm |
35mm |
6.34mm |
3/4" (19.05mm) |
| MAX35-17 |
17mm |
35mm |
6.34mm |
3/4" (19.05mm) |
| MAX35-18 |
18mm |
35mm |
8mm |
3/4" (19.05mm) |
| MAX35-19 |
19mm |
35mm |
8mm |
3/4" (19.05mm) |
| MAX35-20 |
20mm |
35mm |
8mm |
3/4" (19.05mm) |
| MAX35-21 |
21mm |
35mm |
8mm |
3/4" (19.05mm) |
| MAX35-22 |
22mm |
35mm |
8mm |
3/4" (19.05mm) |
| MAX35-23 |
23mm |
35mm |
8mm |
3/4" (19.05mm) |
| MAX35-24 |
24mm |
35mm |
8mm |
3/4" (19.05mm) |
| MAX35-25 |
25mm |
35mm |
8mm |
3/4" (19.05mm) |
| MAX35-26 |
26mm |
35mm |
8mm |
3/4" (19.05mm) |
| MAX35-27 |
27mm |
35mm |
8mm |
3/4" (19.05mm) |
| MAX35-28 |
28mm |
35mm |
8mm |
3/4" (19.05mm) |
| MAX35-29 |
29mm |
35mm |
8mm |
3/4" (19.05mm) |
| MAX35-30 |
30mm |
35mm |
8mm |
3/4" (19.05mm) |
| MAX35-31 |
31mm |
35mm |
8mm |
3/4" (19.05mm) |
| MAX35-32 |
32mm |
35mm |
8mm |
3/4" (19.05mm) |
| MAX35-35 |
35mm |
35mm |
8mm |
3/4" (19.05mm) |
| MAX35-36 |
36mm |
35mm |
8mm |
3/4" (19.05mm) |
| MAX35-38 |
38mm |
35mm |
8mm |
3/4" (19.05mm) |
| MAX35-40 |
40mm |
35mm |
8mm |
3/4" (19.05mm) |
6.34mm Pilot Pin to suit - Part# SP16015
8mm Pilot Pin to suit - Part# SP18035
