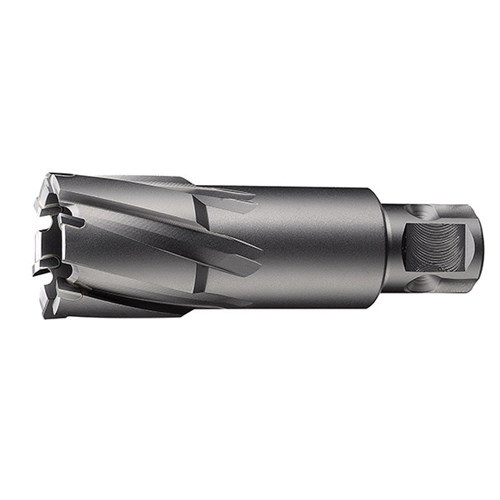

HOLEMAKER 2'' DEPTH MAXI-CUT TCT ANNULAR CUTTERS IMPERIAL

Product Code: HOLANMAXCUT50IMP

ex GST
(Each)
Qty Each (inc GST) Each Save %
Stock Availability
Pack Quantity
1
Increase value Decrease value
Technical Specifications
Brand Holemaker
Description

HOLEMAKER 2'' DEPTH MAXI-CUT TCT ANNULAR CUTTERS IMPERIAL

As well as providing excellent life in mild steel, Tungsten Carbide Tipped Cutters are suitable for drilling difficult materials eg. stainless steel, Bisalloy and wear plate.

These Tungsten Carbide Tipped Cutters consist of an alloy metal body, and tungsten carbide cutting teeth. Due to this composition, these cutters are less susceptible to breakage than standard high speed steel cutters, especially in larger diameters and longer lengths.

The tungsten carbide cutting teeth can also be sharpened and replaced.

Depth of Cut: 2"
Pilot Pin Diameter: 6.34mm
Shank Diameter: 3/4" (19.05mm)
6.34mm Pilot Pin to suit - Part# SP16004

HOLEMAKER 2" DEPTH MAXI-CUT ANNULAR CUTTER SELECTION CHART
Part No. Diameter-inch Diameter-mm Depth Of Cut Pilot Pin Diameter Shank Diameter
MAX50I-5/8 5/8" 15.87mm 2" 6.34mm 3/4" (19.05mm)
MAX50I-3/4 3/4" 19.05mm 2" 6.34mm 3/4" (19.05mm)
MAX50I-7/8 7/8" 22.22mm 2" 6.34mm 3/4" (19.05mm)
MAX50I-1 1" 25.40mm 2" 6.34mm 3/4" (19.05mm)
MAX50I-1-1/8 1-1/8" 28.57mm 2" 6.34mm 3/4" (19.05mm)
MAX50I-1-1/4 1-1/4" 31.75mm 2" 6.34mm 3/4" (19.05mm)
MAX50I-1-5/16 1-5/16" 33.34mm 2" 6.34mm 3/4" (19.05mm)
MAX50I-1-3/8 1-3/8" 34.92mm 2" 6.34mm 3/4" (19.05mm)
MAX50I-1-1/2 1-1/2" 38.10mm 2" 6.34mm 3/4" (19.05mm)
MAX50I-1-5/8 1-5/8" 41.27mm 2" 6.34mm 3/4" (19.05mm)
MAX50I-1-3/4 1-3/4" 44.45mm 2" 6.34mm 3/4" (19.05mm)
MAX50I-1-7/8 1-7/8" 47.62mm 2" 6.34mm 3/4" (19.05mm)
MAX50I-2 2" 50.80mm 2" 6.34mm 3/4" (19.05mm)
MAX50I-2-1/8 2-1/8" 53.97mm 2" 6.34mm 3/4" (19.05mm)
MAX50I-2-1/4 2-1/4" 57.15mm 2" 6.34mm 3/4" (19.05mm)
MAX50I-2-3/8 2-3/8" 60.33mm 2" 6.34mm 3/4" (19.05mm)
MAX50I-2-1/2 2-1/2" 63.50mm 2" 6.34mm 3/4" (19.05mm)
