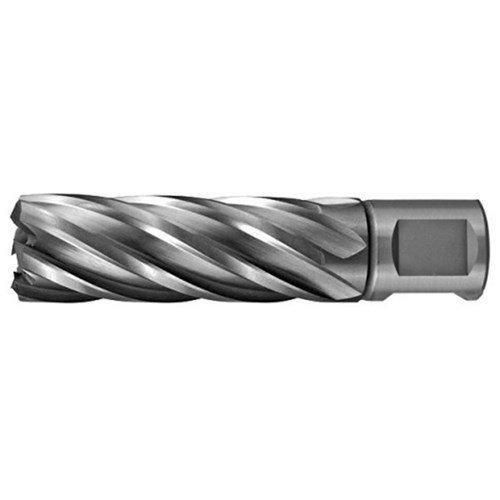

HOLEMAKER® 50MM DEPTH PRO-CUT POWDER STEEL ANNULAR CUTTERS
Pro-Cut ASP® powder steel cutters offer incredible wear resistance & ductility.
ASP® steels are produced by powder metallurgy through a 3-step process: gas-atomisation, hot isostatic pressing and post processing operations such as forging, rolling or drawing.
Suitable for drilling railway line, stainless steel & hardened steels, where high wear resistance and lifetime are required.
- Incredible wear resistance.
- Uniform micro structure.
- Less susceptible to breakage
Depth of Cut: 50mm
Pilot Pin Diameter: 6.34mm
Shank Diameter: 3/4" (19.05mm)
6.34mm Pilot Pin to suit - Part#
SP16004
HOLEMAKER 50MM DEPTH PRO-CUT ANNULAR CUTTER SELECTION CHART
| Part No. |
Diameter |
Depth Of Cut |
Pilot Pin Diameter |
Shank Diameter |
| PC1250 |
12mm |
50mm |
6.34mm |
3/4" (19.05mm) |
| PC1350 |
13mm |
50mm |
6.34mm |
3/4" (19.05mm) |
| PC1450 |
14mm |
50mm |
6.34mm |
3/4" (19.05mm) |
| PC1650 |
16mm |
50mm |
6.34mm |
3/4" (19.05mm) |
| PC1850 |
18mm |
50mm |
6.34mm |
3/4" (19.05mm) |
| PC1950 |
19mm |
50mm |
6.34mm |
3/4" (19.05mm) |
| PC2050 |
20mm |
50mm |
6.34mm |
3/4" (19.05mm) |
| PC2250 |
22mm |
50mm |
6.34mm |
3/4" (19.05mm) |
6.34mm Pilot Pin to suit - Part# SP16004
