HOLEMAKER® 50MM DEPTH SILVER SERIES HSS ANNULAR CUTTERS

50mm Depth of Cut, Metric (HOLEANSILVER50)

ex GST
(Each)
Qty Each (inc GST) Each Save %
Stock Availability
Pack Quantity
1
Increase value Decrease value
Technical Specifications
Brand Holemaker
Description

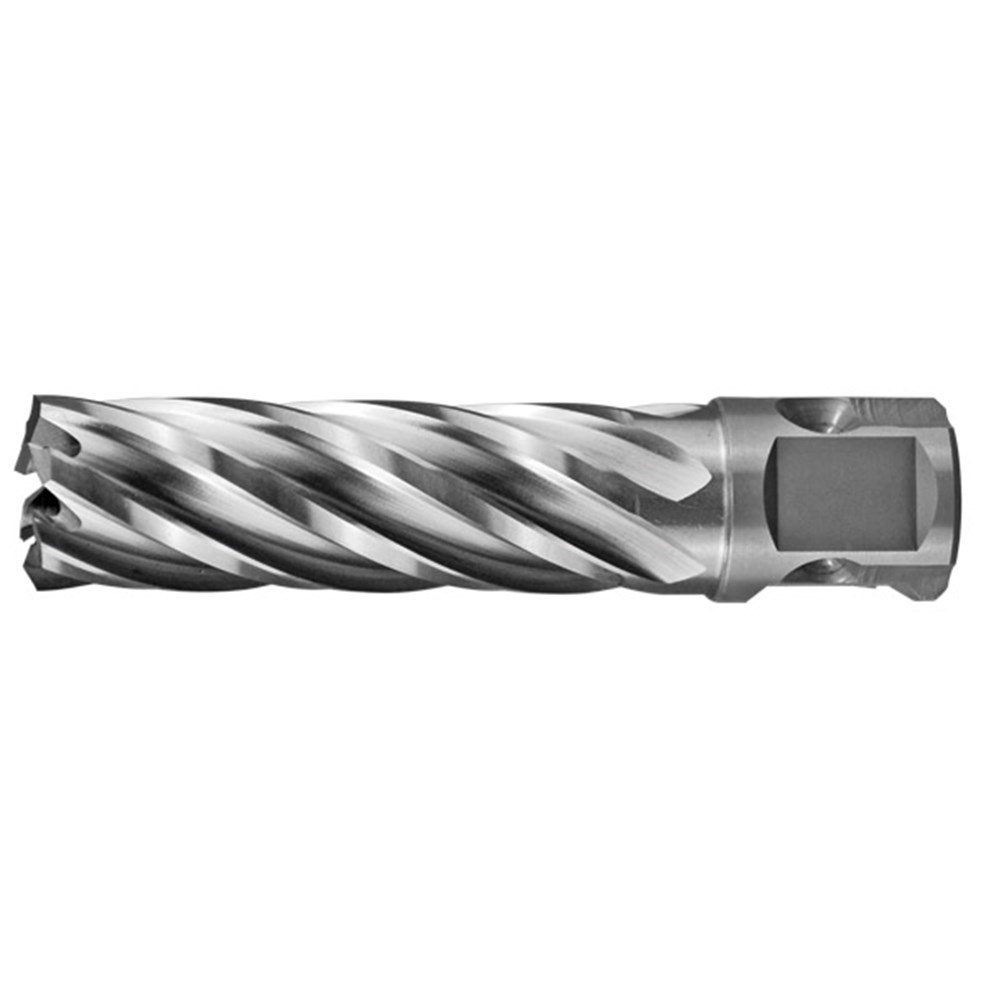

Holemaker® 50MM DEPTH SILVER SERIES HSS ANNULAR CUTTERS


M2AL HIGH SPEED STEEL MATERIAL.
M2AL high speed steel is a high alloy material with a hardness of up to 67.5 HRC, designed for increased endurance of the cutting edge and tool life.

STEP HARDENED PROCESS.
This state of the art manufacturing process produces cutters with extremely hard tooth tips for increased cutter performance, while maintaining a softer body which is lesssusceptible to breakage than standard high speed steel cutters.

MULTI-CUT GEOMETRY.
Provides smooth and fast cutting, with decreased chatter. This also increases the cutters ability to remove swarf away from the cut, and helps to enhance centring.

FULLY GROUND WITH INTERNAL RELIEF.
This feature allows Holemaker cutters to produce reamed quality, burr-free holes, and also helps to reduce torque and horsepower requirements.

UNIVERSAL SHANK.
19.05mm (3/4"") universal shank for cutters up to and including 60mm diameter. Featuring 2 flat sections to suit most magnetic base drilling machines. Cutters of diameters 61mm and above feature a 31.75mm, 1-1/4" Weldon shank. M2AL high speed steel is a high alloy material with a hardness of up to 67.5 HRC, designed for increased endurance of the cutting edge and tool life.

3/4" Shank requires 6.34mm Pilot Pin to suit - Part# SP16004
1-1/4" Shank requires 6.34mm Pilot Pin to suit - Part# SP16008

Holemaker® 50MM DEPTH SILVER SERIES HSS ANNULAR CUTTER selection Chart
Part No. Diameter Depth Of Cut Pilot Pin Diameter Shank Diameter
AS1250 12mm 50mm 6.34mm 3/4" (19.05mm)
AS1350 13mm 50mm 6.34mm 3/4" (19.05mm)
AS1450 14mm 50mm 6.34mm 3/4" (19.05mm)
AS1550 15mm 50mm 6.34mm 3/4" (19.05mm)
AS1650 16mm 50mm 6.34mm 3/4" (19.05mm)
AS1750 17mm 50mm 6.34mm 3/4" (19.05mm)
AS1850 18mm 50mm 6.34mm 3/4" (19.05mm)
AS1950 19mm 50mm 6.34mm 3/4" (19.05mm)
AS2050 20mm 50mm 6.34mm 3/4" (19.05mm)
AS2150 21mm 50mm 6.34mm 3/4" (19.05mm)
AS2250 22mm 50mm 6.34mm 3/4" (19.05mm)
AS2350 23mm 50mm 6.34mm 3/4" (19.05mm)
AS2450 24mm 50mm 6.34mm 3/4" (19.05mm)
AS2550 25mm 50mm 6.34mm 3/4" (19.05mm)
AS2650 26mm 50mm 6.34mm 3/4" (19.05mm)
AS2750 27mm 50mm 6.34mm 3/4" (19.05mm)
AS2850 28mm 50mm 6.34mm 3/4" (19.05mm)
AS2950 29mm 50mm 6.34mm 3/4" (19.05mm)
AS3050 30mm 50mm 6.34mm 3/4" (19.05mm)
AS3150 31mm 50mm 6.34mm 3/4" (19.05mm)
AS3250 32mm 50mm 6.34mm 3/4" (19.05mm)
AS3350 33mm 50mm 6.34mm 3/4" (19.05mm)
AS3450 34mm 50mm 6.34mm 3/4" (19.05mm)
AS3550 35mm 50mm 6.34mm 3/4" (19.05mm)
AS3650 36mm 50mm 6.34mm 3/4" (19.05mm)
AS3750 37mm 50mm 6.34mm 3/4" (19.05mm)
AS3850 38mm 50mm 6.34mm 3/4" (19.05mm)
AS3950 39mm 50mm 6.34mm 3/4" (19.05mm)
AS4050 40mm 50mm 6.34mm 3/4" (19.05mm)
AS4150 41mm 50mm 6.34mm 3/4" (19.05mm)
AS4250 42mm 50mm 6.34mm 3/4" (19.05mm)
AS4350 43mm 50mm 6.34mm 3/4" (19.05mm)
AS4450 44mm 50mm 6.34mm 3/4" (19.05mm)
AS4550 45mm 50mm 6.34mm 3/4" (19.05mm)
AS4650 46mm 50mm 6.34mm 3/4" (19.05mm)
AS4750 47mm 50mm 6.34mm 3/4" (19.05mm)
AS4850 48mm 50mm 6.34mm 3/4" (19.05mm)
AS4950 49mm 50mm 6.34mm 3/4" (19.05mm)
AS5050 50mm 50mm 6.34mm 3/4" (19.05mm)
AS5150 51mm 50mm 6.34mm 3/4" (19.05mm)
AS5250 52mm 50mm 6.34mm 3/4" (19.05mm)
AS5550 55mm 50mm 6.34mm 3/4" (19.05mm)
AS6050 60mm 50mm 6.34mm 3/4" (19.05mm)
AS6150 61mm 50mm 6.34mm 1-1/4" (31.75mm)
AS6250 62mm 50mm 6.34mm 1-1/4" (31.75mm)
AS6350 63mm 50mm 6.34mm 1-1/4" (31.75mm)
AS6450 64mm 50mm 6.34mm 1-1/4" (31.75mm)
AS6550 65mm 50mm 6.34mm 1-1/4" (31.75mm)
