Product Code: A30521-5L

Qty	Each (inc GST)	Each	Save %

Technical Specifications

Category	Metalworking Fluids
Subcategory	SEMI-SYNTHETIC
Brand	FOXX
Size	5L

Description

Product Code: A30521-5L
Fluid Type: Semi-Synthetic Metalworking Fluid
Packaging: 5L Bottle
Recommended for general purpose machining of ferrous and non-ferrous applications. It can be used for turning, drilling (including deep hole requirements), reaming, boring, milling and tapping as well as grinding operations.

DESCRIPTION
FEATURES
APPLICATIONS
TYPICAL PROPERTIES
INSTRUCTIONS

FOXX™ 60K is a premium heavy-duty Semi Synthetic metalworking fluid for machining and grinding of ferrous and most non-ferrous metals. Non-Staining on all Aluminium alloys.

FOXX FLUIDS WITH FACT:

Provides superior foam control through the combination of product design, raw material selection and innovative antifoam technology. These fluids are the result of years of experience that have identified creative methods to prevent, control, and reduce foam, even when fluids are used in high-pressure delivery systems. This expertise and extreme is only available in Foxx™ Fluids.

CORROSION PROTECTION:
The combination of oil-based chemistry and advanced corrosion inhibitors keeps the machine tool and work-piece materials free of corrosion and staining providing the recommended concentration is maintained. Good on most non-ferrous alloys as well.

MICROBIAL CONTROL:
FOXX™ 60K has excellent rancidity control when product concentration is properly controlled.

FOXX™ 60K is a premium Semi Synthetic metalworking fluid is for heavy to severe duty operations meeting your high lubricity needs and maximizing cutting tool edge life. It is recommended for High Fluid Pressure and High Volume Flow Applications where minimization of foam is critical for part quality and machine operations. It is recommended for general purpose machining of ferrous and non-ferrous applications. It can be used for turning, drilling (including deep hole requirements), reaming, boring, milling and tapping as well as grinding operations.

Typical Properties of FOXX 60K

(Note:Data is typical and does not constitute a specification.)

Physical State	Liquid
Appearance	Clear
Odor	Chemical
Solubility in water	100% miscible
Weight, lb/gal, 60°F (15.6 °C)	8.4
Viscosity (SUS) @ 100°F	270
Flash point,COC,°F (°C)	NA
Boiling Point °F (°C)	> 212 °F (> 100 °C)
Freezing point °F (°C)	< 32 °F (< 0 °C)
pH Concentrate	9.3
pH Mix 5%, Typical Operating	9.1
Total Chlorine/Chloride, wt%	0
Total Sulfur, wt%	0
Specific gravity	0.968
Silicones	Yes
Boron	No
Refractometer Factor	1.3

RECOMMENDED STARTING DILUTIONS

FOXX 60K is to be mixed with water for use. Always add concentrate to water. Fluid may be more difficult to mix when water temperature is below 55F (13 C). Add no other materials to the concentrate or mix unless approved by your FOXX District Manager.

Grinding	5% - 10% (1:20 to 1:10)
Machining	5% - 10% (1:20 to 1:10)

CONCENTRATION

Non-solvent Titration, Total Alkalinity, CIMCHEK™ Test Strip or Refractometer can be used.

The Refractometer Factor is 1.3. A Refractometer is only recommended for use in checking the concentration of a fresh charge. Multiply the scale reading obtained on your Refractometer by this factor to obtain the mix concentration in percent. Calibrate the Refractometer so that it reads 0.0 with water before testing the sample mix. Remove gross contaminants from the sample mixes before testing.

HANDLING AND STORAGE

If frozen, thaw completely at room temperature before use. Inside storage is recommended.

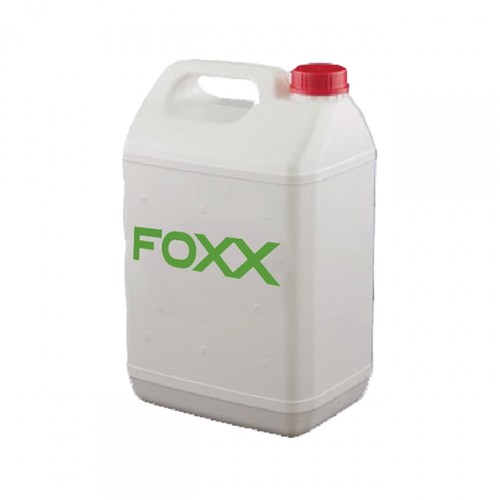

FOXX 60K METAL WORKING FLUID - 5L BOTTLE

Product Code: A30521-5L

Stock Availability

Pack Quantity

Downloads
