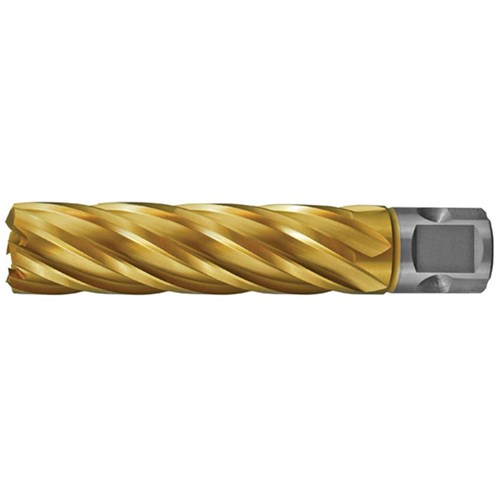

Holemaker 75MM DEPTH GOLD SERIES ANNULAR CUTTERS

HOLEMAKER 75MM DEPTH GOLD SERIES ANNULAR CUTTERS

TITANIUM NITRIDE COATING.
The Titanium Nitride coating significantly increases the tool life by providing the following benefits:.

•  Increased surface hardness to 85HRC.
•  Ceramic surface, reducing friction by up to 30%.
•  Especially resistant to cold welding.
•  Suitable for cutting a wide range of materials.

M2AL High Speed Steel is a high alloy material with a hardness of up to 67.5 HRC, designed for increased endurance of the cutting edge and tool life.

This state of the art manufacturing process produces cutters with extremely hard tooth tips for increased cutter performance, while maintaining a softer body which is less susceptible to breakage than standard high speed steel cutters.

Provides smooth and fast cutting, with decreased chatter. This also increases the cutters ability to remove swarf away from the cut, and helps to enhance centring.

This feature allows Holemaker cutters to produce reamed quality, burr-free holes, and also helps to reduce torque and horsepower requirements.

19.05mm (¾”) Universal Shank with 2 flat sections to suit most magnetic base drilling machines.
Pilot Pin To Suit - SP18075
Depth Of Cut: 75mm
Pilot Pin Diameter: 6.34mm
Shank Diameter: 3/4"

HOLEMAKER 75MM DEPTH GOLD SERIES ANNULAR CUTTER Selection Chart
