• Advanced tool geometry to achiever higher feed rates
• Geometry minimises chipping and furring on the top and bottom surfaces
• Ideal for cutting double sided laminates (melamine, vinyl, spray coatings, painted board etc) as well as natural timbers.
• Compression bits all available with advanced coating
Carbitool 2 Flute Compression Spiral Sizes
| Part No. |
Flute |
Cutting Diameter |
Cutting Length |
Overall Length |
Upcut Length |
Shank |
| T2ESRM08 |
2 |
1/4" (6.35mm) |
7/8" (22.23mm) |
2-1/2" (63.50mm) |
8mm |
1/4" (6.35mm) |
| T2ESRM8M |
2 |
8mm |
25mm |
63mm |
8mm |
8mm |

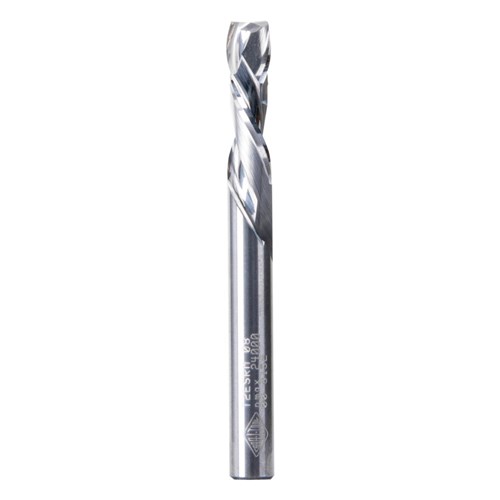

| T2ESRM123/8 |
2 |
3/8" (9.53mm) |
1-1/8" (28.58MM) |
3" (76.20mm) |
8mm |
3/8" (9.53mm) |
| T2ESRM10M |
2 |
10mm |
28.58mm |
75mm |
8mm |
10mm |
| T2SRM161/2 |
2 |
1/2" (12.70mm) |
1" (25.40mm) |
3" (76.20mm) |
10mm |
1/2" (12.70mm) |
| T2XSRM161/2 |
2 |
1/2" (12.70mm) |
1-3/8" (34.93mm) |
3-5/8" (92.08mm) |
10mm |
1/2" (12.70mm) |
