• The geometry of these tools prevents the chipping and furring on the top and bottom surfaces of the material being cut.
• Ideal for cutting double sided laminates (melamine, vinyl, spray coatings, painted board etc) as well as natural timbers
• 3 Flute allow for increased high speed machining with high spindle speeds
• Compression bits all available with advanced coating

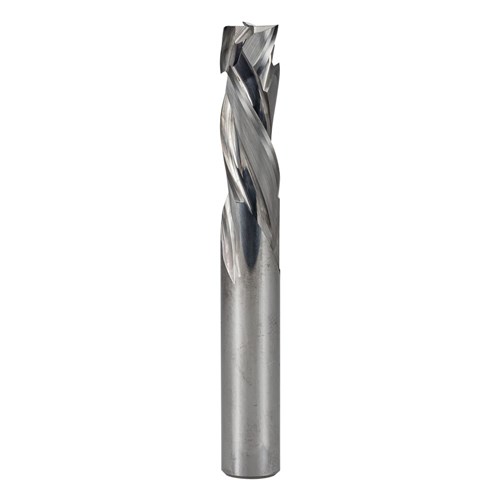

Carbitool 3 Flute Compression Spiral Sizes
| Part No. |
Flute |
Cutting Diameter |
Cutting Length |
Overall Length |
Upcut Length |
Shank |
| T3ESRM123/8 |
3 |
3/8" (9.53mm) |
1-1/8" (28.58MM) |
3" (76.20mm) |
8mm |
3/8" (9.53mm) |
| T3ESRM10M |
3 |
10mm |
28mm |
75mm |
8mm |
10mm |
| T3SRM161/2 |
3 |
1/2" (12.70mm) |
1" (25.40mm) |
3" (76.20mm) |
10mm |
1/2" (12.70mm) |
| T3ESRM1212M |
3 |
3/8" (9.53mm) |
22mm |
80mm |
- |
3/8" (9.53mm) |
| T3XSRM161/2 |
3 |
1/2" (12.70mm) |
1-3/8" (34.93mm) |
3-5/8" (92.08mm) |
10mm |
1/2" (12.70mm) |
