• The geometry of these tools prevents the chipping and furring on the top and bottom surfaces of the material being cut.
• Ideal for cutting double sided laminates (melamine, vinyl, spray coatings, painted board etc) as well as natural timbers
• 3 Flute allow for increased high speed machining with high spindle speeds
• Compression bits all available with advanced coating
Carbitool 3 Flute Compression Spiral Sizes For Mortising Short Upcut
| Part No. |
Flute |
Cutting Diameter |
Cutting Length |
Overall Length |
Upcut Length |
Shank |
| T3SRM123/8(Q) |
3 |
3/8" (9.53mm) |
7/8" (22.23mm) |
3" (76.20mm) |
5mm |
3/8" (9.53mm) |

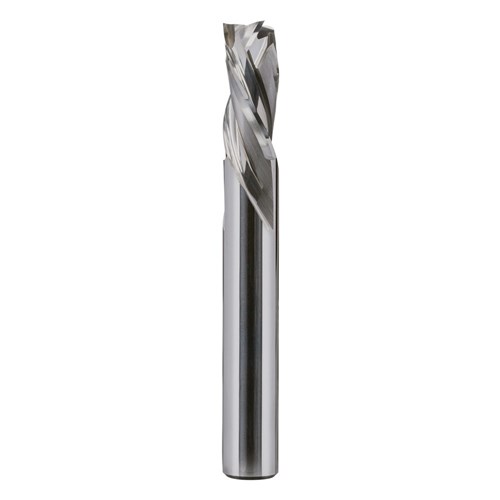

| T3SRM10MQ |
3 |
10mm |
22.23mm |
75mm |
5mm |
10mm |
| T3SRM161/2(Q) |
3 |
1/2" (12.70mm) |
1" (25.40mm) |
3" (76.20mm) |
1/4" (6.35mm) |
1/2" (12.70mm) |
| T3XESRM161/2Q |
3 |
1/2" (12.70mm) |
1-5/8" (41.28mm) |
3-5/8" (92.08mm) |
1/4" (6.35mm) |
1/2" (12.70mm) |
