• The geometry of these tools prevents the chipping and furring on the top and bottom surfaces of the material being cut.
• Ideal for cutting double sided laminates (melamine, vinyl, spray coatings, painted board etc) as well as natural timbers
• 4 Flute allow for increased high speed machining with high spindle speeds
• Compression bits all available with advanced coating
• Chip breaker flute breaks swarf into smaller particles
• Geometry allows for high feed rates

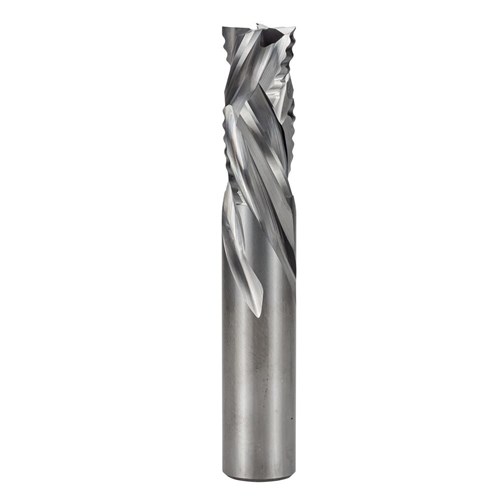

Carbitool 4 Flute combined rougher/finisher Compression Spiral Sizes
| Part No. |
Flute |
Cutting Diameter |
Cutting Length |
Overall Length |
Upcut Length |
Shank |
Chipbreakers |
| T4SRMRF161/2 |
4 |
1/2" (12.70mm) |
1" (25.40mm) |
3" (76.20mm) |
10mm |
1/2" (12.70mm) |
w/ chipbreakers |
| T4XESRMRF161/2 |
4 |
1/2" (12.70mm) |
1-3/4" (44.45mm) |
3-5/8" (92.08mm) |
10mm |
1/2" (12.70mm) |
w/ chipbreakers |
| T4XSRMRF161/2 |
4 |
1/2" (12.70mm) |
1-3/8" (34.93mm) |
3-5/8" (92.08mm) |
10mm |
1/2" (12.70mm) |
w/ chipbreakers |
