• The geometry of these tools prevents the chipping and furring on the top and bottom surfaces of the material being cut.
• Ideal for cutting double sided laminates (melamine, vinyl, spray coatings, painted board etc) as well as natural timbers
• 4 Flute allow for increased high speed machining with high spindle speeds
• Compression bits all available with advanced coating
• Chip breaker flute breaks swarf into smaller particles
• Achieves high feed rates for easy ejection

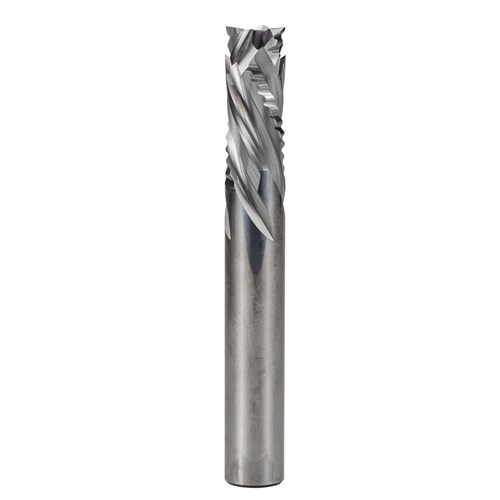

Carbitool 4 Flute combined rougher/finisher Compression Spiral (short upcut) Sizes
| Part No. |
Flute |
Cutting Diameter |
Cutting Length |
Overall Length |
Upcut Length |
Shank |
Chipbreakers |
| T4SRMRF10MQ |
4 |
10mm |
22.50mm |
75mm |
5mm |
10mm |
w/ chipbreakers |
