• The geometry of these tools prevents the chipping and furring on the top and bottom surfaces of the material being cut.
• Ideal for cutting double sided laminates (melamine, vinyl, spray coatings, painted board etc) as well as natural timbers.
• Compression bits all available with advanced coating
Carbitool Single Flute Compression Spiral Sizes
| Part No. |
Flute |
Cutting Diameter |
Cutting Length |
Overall Length |
Upcut Length |
Shank |
| TSRM123/8 |
Single |
3/8" (9.53mm) |
1" (25.40mm) |
3" (76.20mm) |
- |
3/8" (9.53mm) |
| TSRM10M |
Single |
10mm |
25mm |
75mm |
- |
10mm |

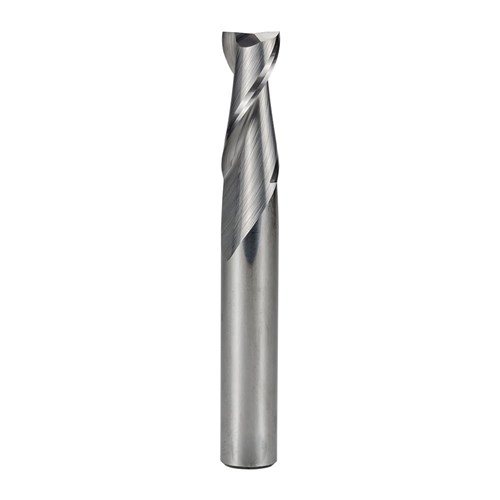

| TSRM161/2 |
Single |
1/2" (12.70mm) |
1-1/4" (31.75mm) |
3" (76.20mm) |
- |
1/2" (12.70mm) |
| TSRM16M |
Single |
16mm |
35mm |
92mm |
- |
16mm |
| TSRM20M |
Single |
20mm |
40mm |
104mm |
- |
20mm |
