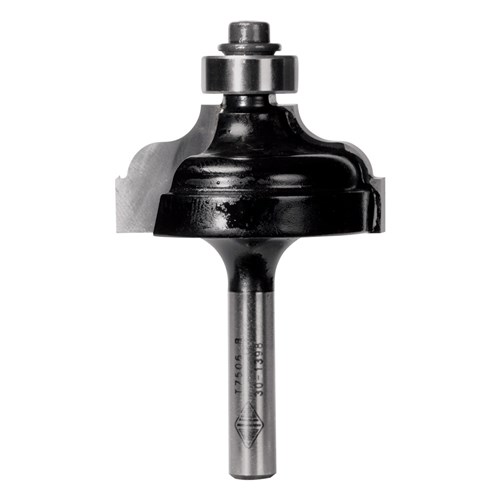

OGEE BIT - CARBIDE TIPPED 34.9mm X 16.5mm X 58.7mm X 4.8mm

Product Code: T7506B

$59.85 ex GST
(Each)
Qty Each (inc GST) Each Save %
Stock Availability
Available to Order
Pack Quantity
1
Increase value Decrease value
Technical Specifications
Category Edge & Face Forming Bits
Subcategory Ogee Bits
Brand Carbitool
Cutting Diameter 34.93mm (1-3/8'')
Cutting Length 16.51mm (0.65'')
Shank Diameter 6.35mm (1/4'')
Type Carbide Tipped
Overall Length 58.74mm (2-5/16'')
Flute 2
Radius 4.80mm (3/16'')
Replacement Bearing TB11

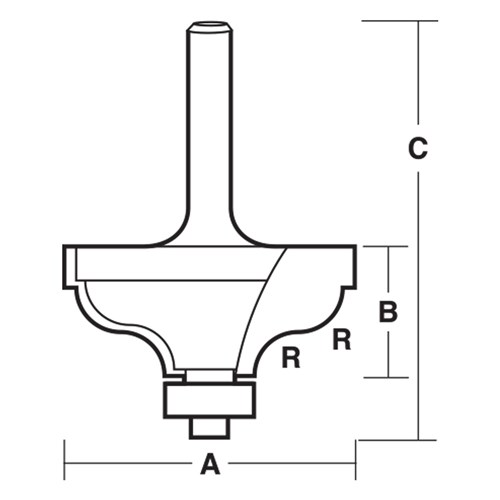

Technical Specifications
A 1-3/8" (34.9mm)
B 0.650" (16.5mm)
C 2-5/16" (58.7mm)
R Radius 3/16" (4.8mm)
Description

These bit produce a decorative form used widely on table and mantle edges.

By fitting the optional TB9 ball bearing a 1/16" edge bead can be produced as illustrated.

Can be used as a combination bit.
