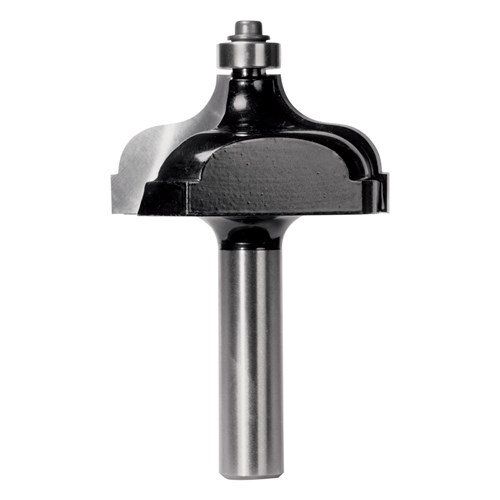

OGEE BIT - CARBIDE TIPPED 54mm X 25.4mm X 86mm X 9.5mm

Product Code: T7512B1/2

$75.54 ex GST
(Each)
Qty Each (inc GST) Each Save %
Stock Availability
Available to Order
Pack Quantity
1
Increase value Decrease value
Technical Specifications
Category Edge & Face Forming Bits
Subcategory Ogee Bits
Brand Carbitool
Cutting Diameter 53.98mm (2-1/8'')
Cutting Length 25.40mm (1'')
Shank Diameter 12.70mm (1/2'')
Type Carbide Tipped
Overall Length 85.73mm (3-3/8'')
Flute 2
Radius 9.50mm (3/8'')
Replacement Bearing TB11

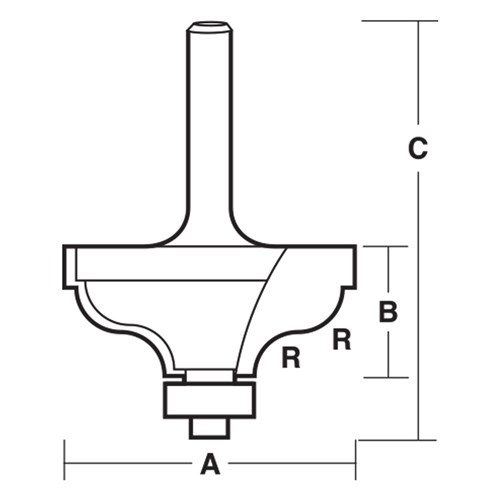

Technical Specifications
A 2-1/8" (54mm)
B 1" (25.4mm)
C 3-3/8" (86mm)
R Radius 3/8" (9.5mm)
Description

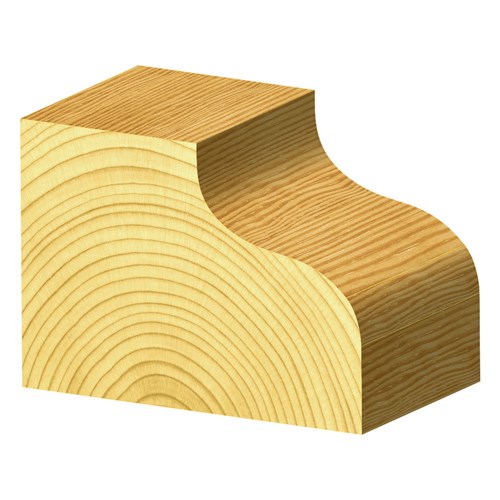

These bit produce a decorative form used widely on table and mantle edges.

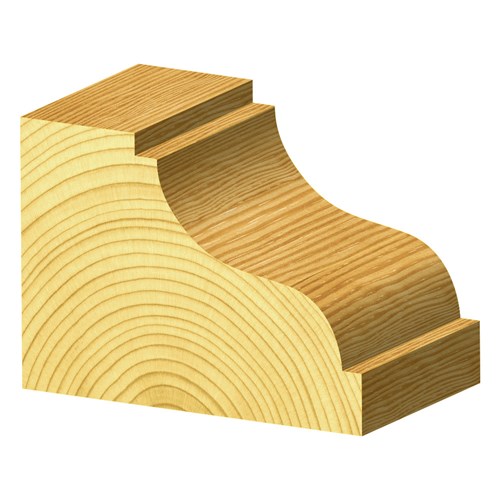

By fitting the optional TB9 ball bearing a 1/16" edge bead can be produced as illustrated.

Can be used as a combination bit.
