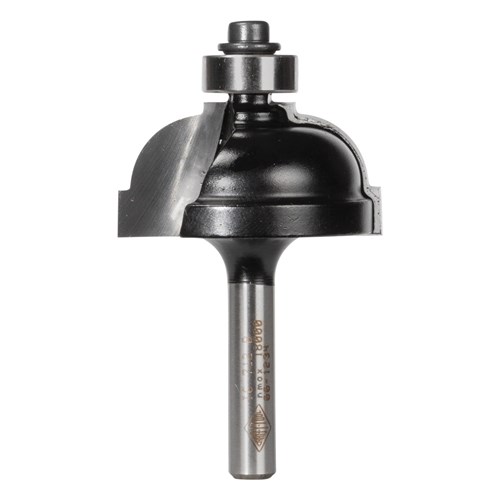

• CLASSICAL COVE BIT - CARBIDE TIPPED 35mm X 17mm X 70mm X 9.5mm

CLASSICAL COVE BIT - CARBIDE TIPPED 35mm X 17mm X 70mm X 9.5mm

Product Code: TC712B1/2

$58.53 ex GST
(Each)
Qty Each (inc GST) Each Save %
Stock Availability
Available to Order
Pack Quantity
1
Increase value Decrease value
Technical Specifications
Category Edge & Face Forming Bits
Subcategory Classical Bits
Brand Carbitool
Cutting Diameter 34.93mm (1-3/8'')
Cutting Length 17.02mm (0.67'')
Shank Diameter 12.70mm (1/2'')
Type Carbide Tipped
Overall Length 69.85mm (2-3/4'')
Flute 2
Radius 9.50mm (3/8'')
Replacement Bearing TB9

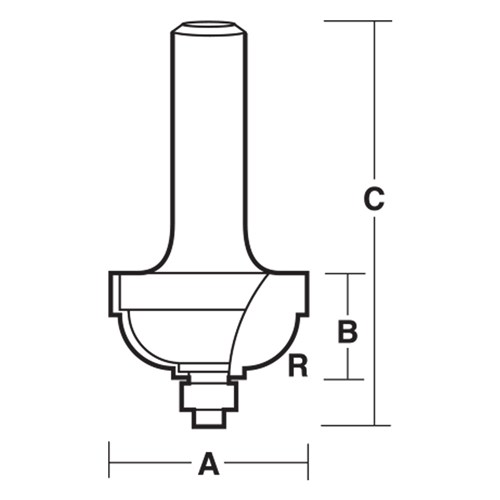

Technical Specifications
A 1-3/8" (35mm)
B 0.670" (17mm)
C 2-3/4" (70mm)
R Radius 3/8" (9.5mm)
Description

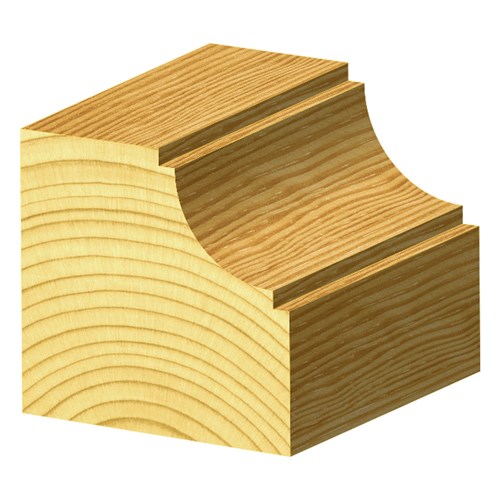

  • A decorative edge moulding

  • By fitting the optional TB11 ball bearing the standard cove design can be achieved

  • Larger TB11 bearing will eliminate bottom bead

  • Use routing machines heght adjustment to include or exclude top bead
