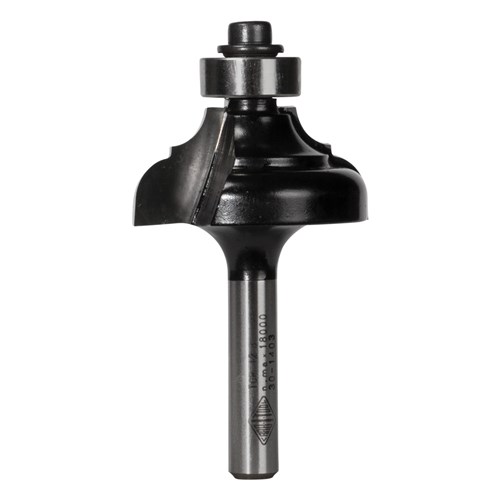

• PROVINCIAL BIT - CARBIDE TIPPED 25.4mm X 11.7mm X 50.8mm X 3.2mm

PROVINCIAL BIT - CARBIDE TIPPED 25.4mm X 11.7mm X 50.8mm X 3.2mm

Product Code: TCR8B

$58.53 ex GST
(Each)
Qty Each (inc GST) Each Save %
Stock Availability
Available to Order
Pack Quantity
1
Increase value Decrease value
Technical Specifications
Category Edge & Face Forming Bits
Subcategory Provincial Bits
Brand Carbitool
Cutting Diameter 25.40mm (1'')
Cutting Length 11.68mm (0.46'')
Shank Diameter 6.35mm (1/4'')
Type Carbide Tipped
Overall Length 50.80mm (2'')
Flute 2
Radius 3.20mm (1/8'')
Replacement Bearing TB11

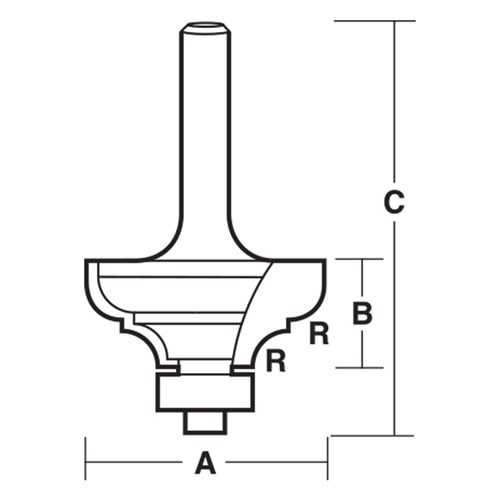

Technical Specifications
A 1" (25.4mm)
B 0.460" (11.7mm)
C 2" (50.8mm)
R Radius 1/8" (3.2mm)
Description

This bit can be used to produce decorative edge mouldings or by using the guide on your machine many combinations of rounds and covers can be achieved.

  • Versatile combination bit.

  • Change bearing to include bottom bead.

  • Use smaller TB9 bearing to expose bottom corner of cutter. This will generate an extra bead (not pictured).

  • Reversible profile to classical bit.
