  • DRAWING LINE BIT - CARBIDE TIPPED 23.1mm X 15mm X 7.1mm X 53mm

DRAWING LINE BIT - CARBIDE TIPPED 23.1mm X 15mm X 7.1mm X 53mm

Product Code: TDL4B

Price-Match
$61.17 ex GST
(Each)
Qty Each (inc GST) Each Save %
Stock Availability
Available to Order
Pack Quantity
1
Increase value Decrease value
Technical Specifications
Category Edge & Face Forming Bits
Subcategory Drawing Line Bits
Brand Carbitool
Cutting Diameter 23.11mm (0.91'')
Cutting Length 15.08mm (19/32'')
Shank Diameter 6.35mm (1/4'')
Type Carbide Tipped
Overall Length 53.18mm (2-3/32'')
Flute 2
Replacement Bearing TB8
Nose Diameter 7.14mm (9/32'')

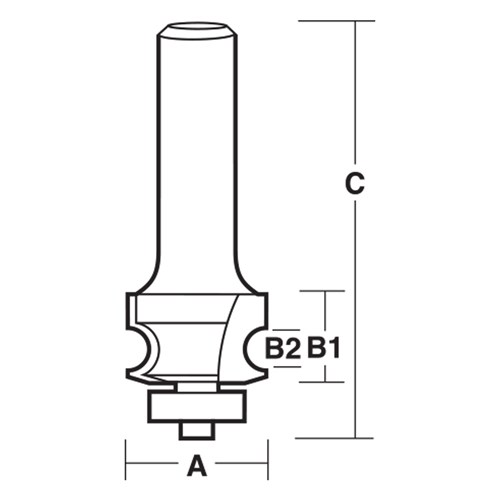

Technical Specifications
A 0.910" (23.1mm)
C 2-3/32" (53mm)
B1 19/32" (15mm)
B2 9/32" (7.1mm)
Description

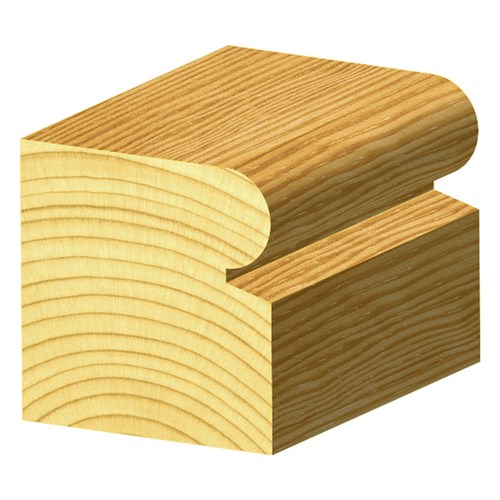

A popular mould. Common on old style double hung windows and architraves.
