• INVERTED CHAMFERING BIT - CARBIDE TIPPED 44.5mm X 22.5mm X 15.9mm X 76.3mm

INVERTED CHAMFERING BIT - CARBIDE TIPPED 44.5mm X 22.5mm X 15.9mm X 76.3mm

Product Code: TI916B1/2

$85.48 ex GST
(Each)
Qty Each (inc GST) Each Save %
Stock Availability
Available to Order
Pack Quantity
1
Increase value Decrease value
Technical Specifications
Category Edge & Face Forming Bits
Subcategory Inverted Chamfering Bits
Brand Carbitool
Cutting Diameter 44.45mm (1-3/4'')
Cutting Length 22.50mm (0.886'')
Shank Diameter 12.70mm (1/2'')
Cutting Angle 45°
Type Carbide Tipped
Overall Length 76.20mm (3'')
Flute 2
Replacement Bearing TBS9
Angle from Vertical 45°
Cutting Height 15.88mm (5/8'')

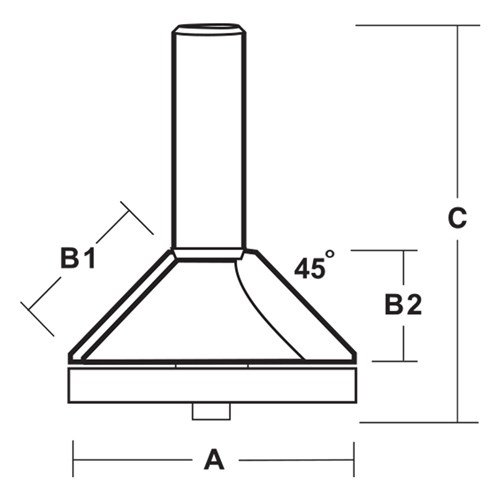

Technical Specifications
A 1-3/4" (44.5mm)
C 3" (76.3mm)
B1 22.5mm
B2 5/8" (15.9mm)
Description

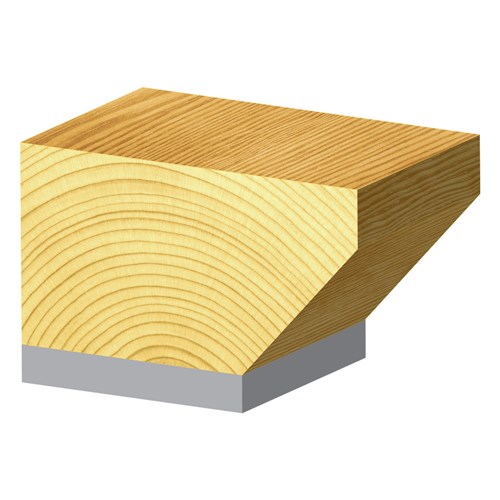

Used for chamfering the bottom of boards.
