  • CHAMFERING BIT WITH RADIUS 60.9mm X 13.5mm X 65mm X 3.9mm

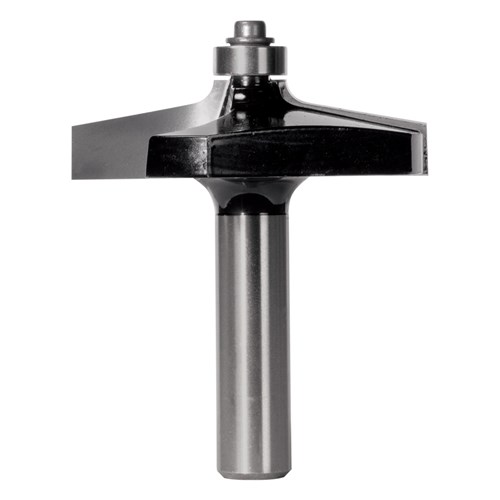

CHAMFERING BIT WITH RADIUS 60.9mm X 13.5mm X 65mm X 3.9mm

Product Code: TRR16B1/2

Price-Match
$83.04 ex GST
(Each)
Qty Each (inc GST) Each Save %
Stock Availability
Available to Order
Pack Quantity
1
Increase value Decrease value
Technical Specifications
Category Edge & Face Forming Bits
Subcategory Chamfering Bits
Brand Carbitool
Cutting Diameter 60.96mm (2.4'')
Cutting Length 13.46mm (0.53'')
Shank Diameter 12.70mm (1/2'')
Cutting Angle 80°
Type Carbide Tipped
Overall Length 65.09mm (2-9/16'')
Flute 2
Radius 3.90mm (5/32'')
Replacement Bearing TB11
Angle from Vertical 80°

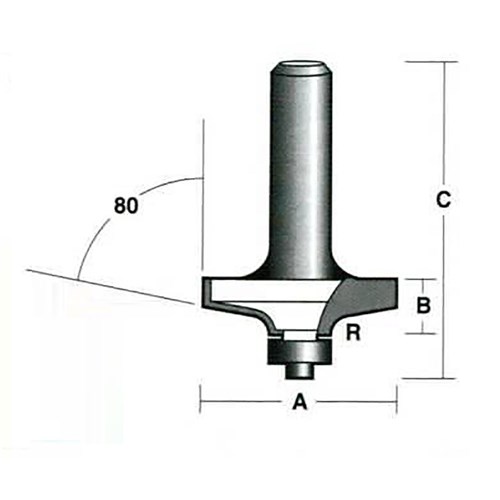

Technical Specifications
A 2.4" (60.9mm)
B 0.530" (13.5mm)
C 2-9/16" (65mm)
R Radius 0.156" (3.9mm)
Description

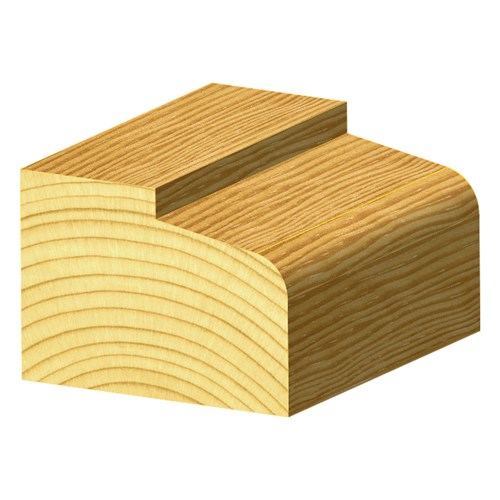

Shallow angle chamfer 10degrees from horizontal axis

Chamfers outside edge or workpiece and cuts radius simultaneously
