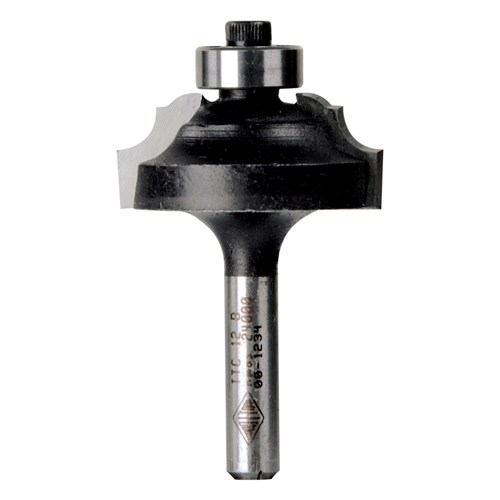

TRADITIONAL CLASSICAL BITS - CARBIDE TIPPED 25.4mm X 11.1mm X 2mm X 63.5mm X 3.2mm X 2mm

Product Code: TTC8B1/2

$57.20 ex GST
(Each)
Qty Each (inc GST) Each Save %
Stock Availability
Available to Order
Pack Quantity
1
Increase value Decrease value
Technical Specifications
Category Edge & Face Forming Bits
Subcategory Classical Bits
Brand Carbitool
Cutting Diameter 25.40mm (1'')
Cutting Length 11.11mm (7/16'')
Shank Diameter 12.70mm (1/2'')
Type Carbide Tipped
Overall Length 63.50mm (2-1/2'')
Flute 2
Radius 3.20mm (1/8'')
Replacement Bearing TB11
Cutting Length B2 1.98mm (5/64'')
Radius R2 2.00mm (5/64'')

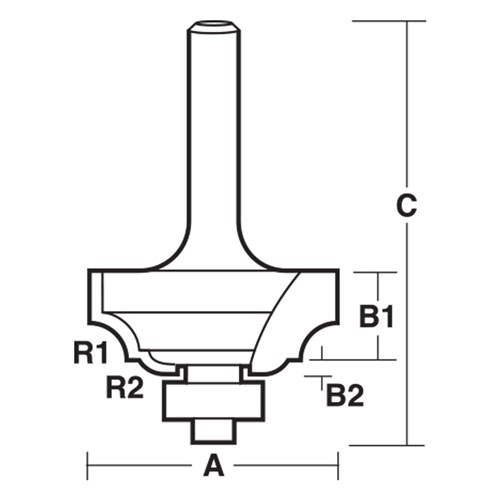

Technical Specifications
A 1" (25.4mm)
C 2-1/2" (63.5mm)
B1 7/16" (11.1mm)
B2 5/64" (2mm)
R1 Radius 3.2mm
R2 Radius 2mm
Description

This bit produces a traditional style furniture moulding.

TTC 8B to TTC12 B 1/2 incorporate large top radius and small bottom radius.
