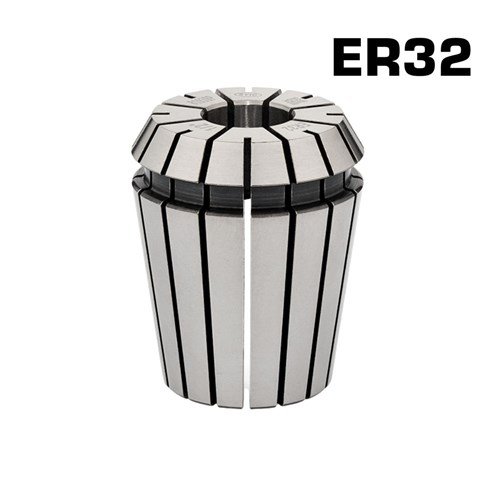

ER32 Collet
Specifications
Size: 2 - 20mm
Tolerance: 1mm
Overal Length: 40mm
Diameter: 33mm
Standard: DIN6499/ISO15488
8° back taper, 30° front nose taper
Clamping Tolerance: 1mm (ID > 3mm), 0.5mm (ID < 3mm)
Used for drills, taps, mills and reamers, etc.
ER32 Selection Chart
| Part No. |
Nominal Size |
Tolerance |
Clamping Range |
Overall Legth |
Diameter |
| ER32-1/2 |
1/2'' |
1mm |
0.461 - 0.5'' |
40mm |
33mm |
| ER32-1/4 |
1/4'' |
1mm |
0.211 - 0.25'' |
40mm |
33mm |
| ER32-1/8 |
1/8'' |
1mm |
0.086 - 0.125'' |
40mm |
33mm |
| ER32-10 |
10mm |
1mm |
10-9mm |
40mm |
33mm |
| ER32-12 |
12mm |
1mm |
12-11mm |
40mm |
33mm |
| ER32-13 |
13mm |
1mm |
13-12mm |
40mm |
33mm |
| ER32-14 |
14mm |
1mm |
14-13mm |
40mm |
33mm |
| ER32-16 |
16mm |
1mm |
16-15mm |
40mm |
33mm |
| ER32-18 |
18mm |
1mm |
18-17mm |
40mm |
33mm |
| ER32-20 |
20mm |
1mm |
20-19mm |
40mm |
33mm |
| ER32-3 |
3mm |
1mm |
3-2mm |
40mm |
33mm |
| ER32-3/8 |
3/8'' |
1mm |
0.336 - 0.375'' |
40mm |
33mm |
| ER32-4 |
4mm |
1mm |
4-3mm |
40mm |
33mm |
| ER32-5 |
5mm |
1mm |
5-4mm |
40mm |
33mm |
| ER32-6 |
6mm |
1mm |
6-5mm |
40mm |
33mm |
| ER32-8 |
8mm |
1mm |
8-7mm |
40mm |
33mm |
