HOLEMAKER AIR 35, FULLY ATEX 11 CERTIFIED, PNEUMATIC MAGNETIC BASE ANGLE DRILL,CAP: 35MM DIA X 25MM

Product Code: HMP35AD-ATEX

$12460.00 ex GST
(Each)
Qty Each (inc GST) Each Save %
Stock Availability
Available to Order
Pack Quantity
1
Increase value Decrease value
Description

The HMP35AD is a small portable pneumatic drilling machine which allows holes to be drilled up to 35mm diameter in places with restricted space, using standard 3/4" Weldon Shank cutters. This machine is the lowest height pneumatic magnetic drill currently available on the world market. The combination of pneumatic drive and permanent magnetic base eliminate the need for electric power supply thus making this machine an ideal solution in many hazardous environments such as oil drilling platforms, mining industry, shipbuilding or petrochemical industry.

*12mm twist drill capacity using Weldon Shank twist drill bits.

Both the machine and the body of the HMP35AD-ATEX drill is certified ATEX II2G/D C IIC T6;T4 and meets the requirements for use in areas with a risk of explosion.

  • Capacity ( Diameter ): 35mm
  • Capacity ( Depth ): 25mm
  • Motor: 800 watt pneumatic, 1400L/min
  • Weight: 13.0kg

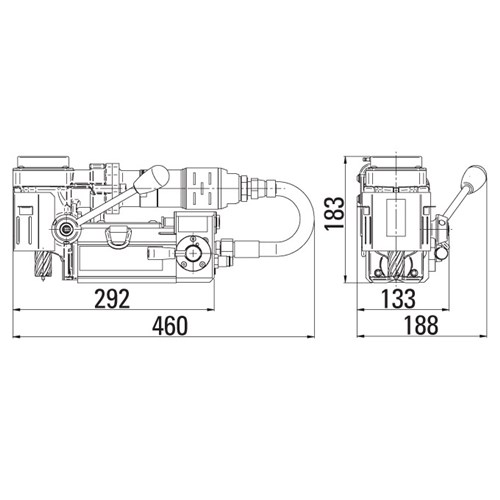

  • Height: 183mm Constant Working Height
  • Stroke: 39mm
  • Magnetic Dead Lift: 6500Nm On 25mm Steel Plate
  • Through Spindle Coolant System
  • Supplied In Metal Carry Case With Cutter Guard & Safety Strap
