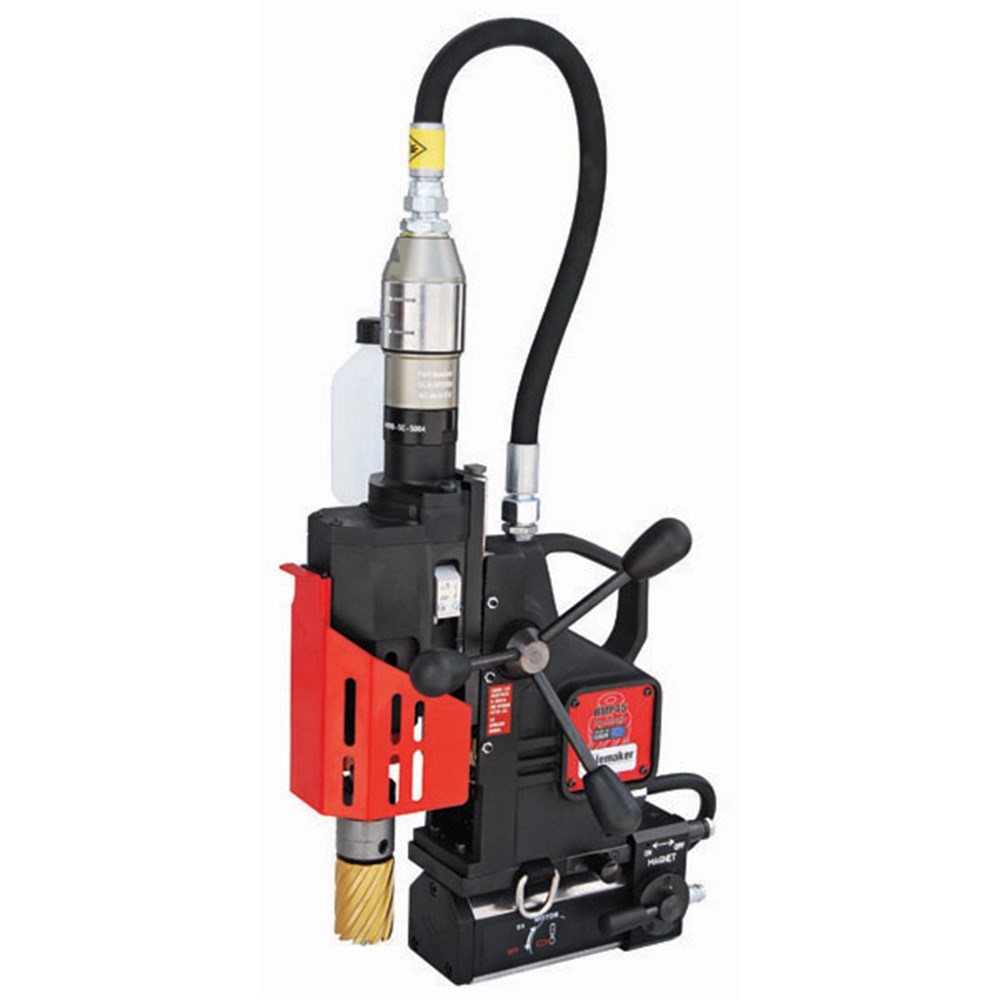

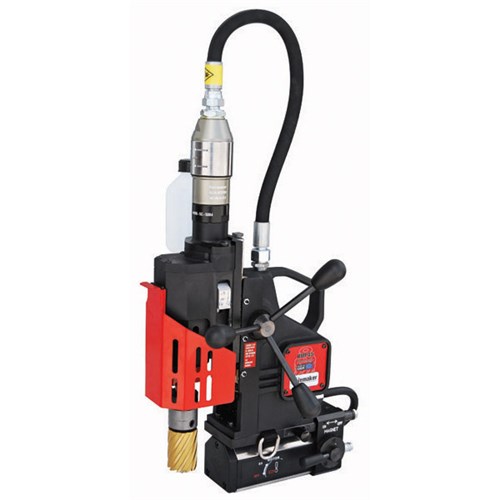

The HMP45 is a compact portable pneumatic powered drilling machine which allows hole cutting up to 45mm diameter and 52mm depth using Holemaker cutters. The No. 2 Morse Taper spindle allows a wide range of tooling to be used with the machine.
The combination of pneumatic drive and permanent magnetic base eliminate the need for electric power supply thus making this machine an ideal solution in many hazardous environments such as oil drilling platforms, mining industry, shipbuilding or petrochemical industry.
The compressed-air motor used in the HMP45 drill is certified ATEX II2G/D C IIC T6;T4 and meets the requirements for use in areas with a risk of explosion.
- Capacity ( Diameter ): 45mm
- Capacity ( Depth ): 52mm
- Capacity ( Twist Drill ): #2 Morse Taper 23mm
- Motor: Power 800 watt Pneumatic, 1400L/min
- Speed: 2 Speed 190 / 290rpm
- Weight: 19.0kg
- Magnetic Dead Lift: 7500Nm On 25mm Steel Plate
- Height: 690mm min / 750mm max
- Stroke: 150mm
- Through Spindle Coolant System
- Supplied In Metal Carry Case With Cutter Guard & Safety Strap
