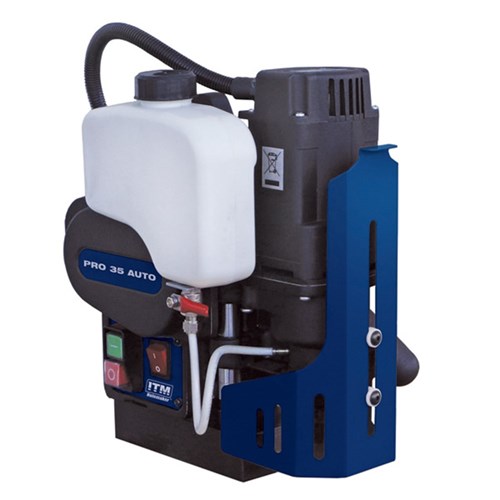

The Holemaker PRO 35 AUTO is equipped with many advanced systems & is an ideal cost saving solution for drilling a large number of holes with diameters up to 35mm and maximum depth up to 52mm.
Superior features of the Holemaker PRO 35 AUTO drilling machine include:.
Compact, rigid design with ultra-light weight of 13.5 kg.
Perfect combination of spindle speeds and torque reduces cycle times for both TCT and HSS cutters.
Smart control systems for excellent performance and operator’s safety.
Dual rail slide system ensures extraordinary rigidity and maintenance free operation.
Integrated cutter guard.
Large capacity coolant tank
SPECIFICATIONS
Capacity ( Diameter ): 35mm
Capacity ( Depth ): 52mm
Motor Power: 920 watt
Input Power: 1000 watt Single Phase 240V
Speed: 350rpm
Weight: 13.5kg
Magnetic Dead Lift: 9500Nm On 25mm Steel Plate
Stroke: 70mm

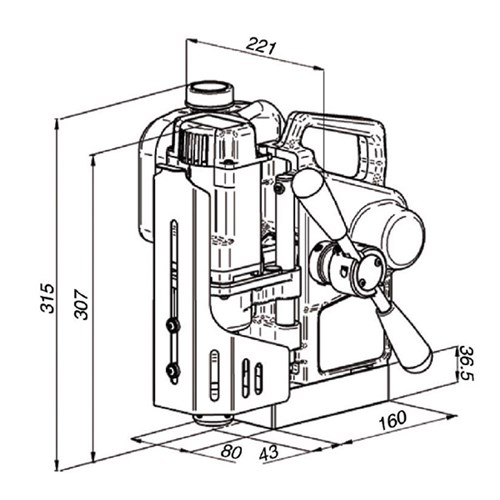

Height: 306mm min / 376mm max
Through Spindle Coolant System
Smart Magnet Technology To Ensure Sufficient Magnetic Adhesion
Supplied In Metal Carry Case With Cutter Guard & Safety Strap
