#3 MORSE TAPER, VERSATILE DRILLING & TAPPING MACHINE
The Holemaker Special 110 is a highly versatile European made machine for professional drilling and tapping applications, featuring the latest innovations in drilling machine technology. The machine’s forward & reverse work modes with variable speed adjustment allows thread cutting up to M30 of through holes and blind holes.
Features
- New generation Italian made motor
- Intelligent speed control system maintains stable speed regardless of load changes
- Electronic Variable Speed Control
- Electronic clutch
- Overload and Overheat protection
- Tilt sensor stops the motor in cases of machines break away
- 360-degree visual monitoring system indicates current condition of the drill and gives safety and diagnostic information e.g. worn brushes
- Intuitive control panel at top of the drill
- Very light weight
- Supplied in a metal carry case with cutter guard & safety strap
- Capacity ( Diameter ): 120mm
- Capacity ( Depth ) : 110mm
- Twist drill capacity: 32mm
- Tap capacity: M30
- #3 Morse Taper spindle
- 2150 Watt 240V motor
- 4 Speed variable gearbox (75-110 / 135-200 / 220-320 / 390-570rpm)
- Lightweight, only 25kg
- 18000Nm Magnetic dead lift on 25mm steel plate
- 225mm Stroke

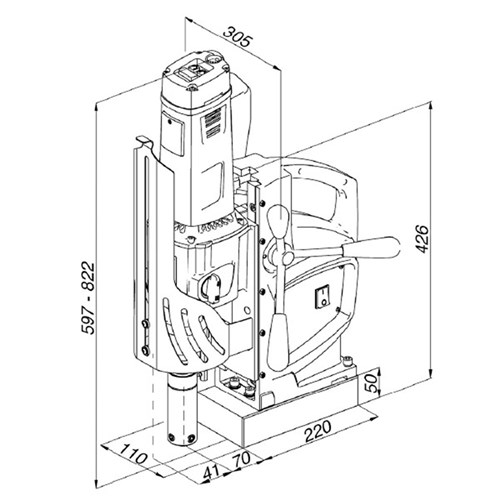

- Height 597mm min / 822mm max
Supplied with arbor for use with 3/4” shank Holemaker cutters up to 75mm diameter and 75mm depth of cut. Optional arbor for 1-1/4” shank cutters up to 120mm diameter and 110mm depth.
