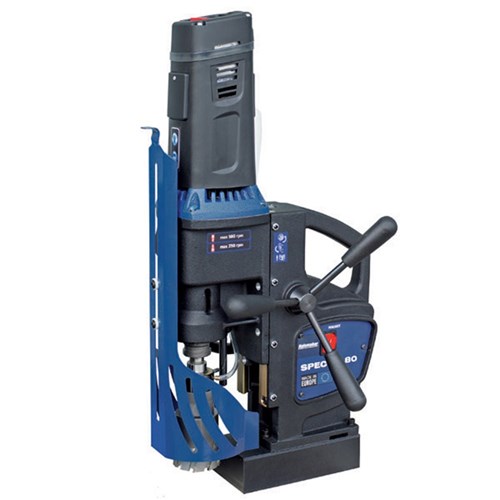

#3 MORSE TAPER, VERSATILE DRILLING & TAPPING MACHINE
The Holemaker Special 80 is a highly versatile European made machine for professional drilling and tapping applications, featuring the latest innovations in drilling machine technology. The machine’s forward & reverse work modes with variable speed adjustment allows thread cutting up to M24 of through holes and blind holes.
Features
- New generation Italian made motor
- Intelligent speed control system maintains stable speed regardless of load changes
- Electronic Variable Speed Control
- Electronic clutch
- Overload and Overheat protection
- Tilt sensor stops the motor in cases of machines break away
- 360-degree visual monitoring system indicates current condition of the drill and gives safety and diagnostic information e.g. worn brushes
- Intuitive control panel at top of the drill
- Very light weight
- Supplied in a durable blow mould carry case with cutter guard & safety strap
- Capacity ( Diameter ): 80mm
- Capacity ( Depth ): 110mm
- Twist drill capacity: 25mm
- Tap capacity: M24
- #3 Morse Taper spindle
- Input power: 1600 Watt Single Phase 240V
- Motor Power: 1500 Watt
- 2 Speed variable gearbox (120-190 / 290-450rpm)
- Lightweight, only 18kg
- 11000Nm Magnetic dead lift on 25mm steel plate
- 190mm Stroke

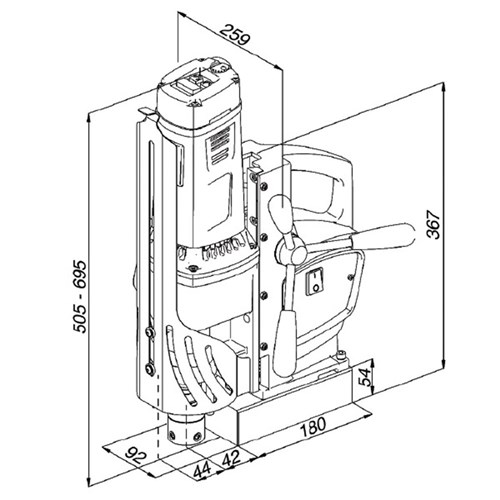

- Height 554mm min / 744mm max
Supplied with arbor for use with 3/4” shank Holemaker cutters up to 75mm diameter and 75mm depth of cut. Optional arbor for 1-1/4” shank cutters up to 80mm diameter and 110mm depth.
