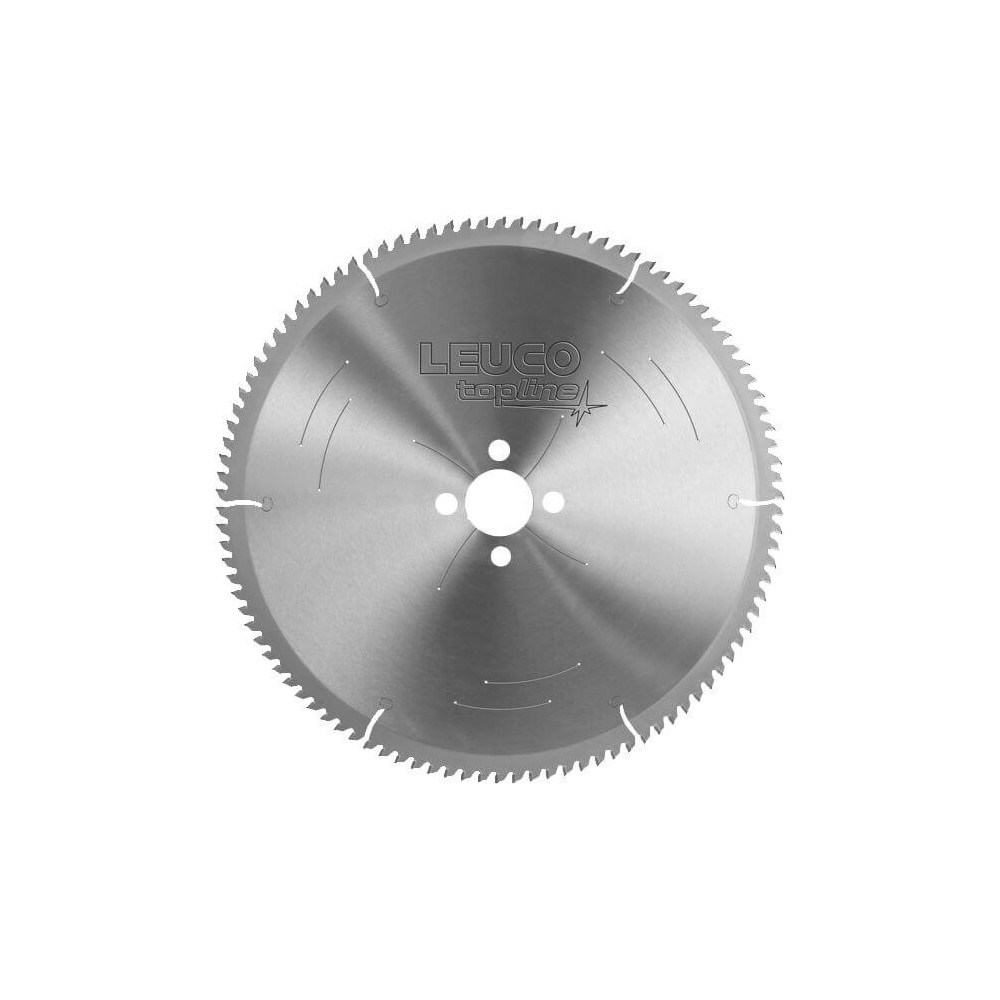

The LEUCO 189074 NF-Chop Saw Blade HW is designed for clipping and mitre cuts in aluminium profiles on chop and mitre saws or table saws. Its neutral hook angle and TR-F triple chip/flat tooth geometry are suited to non-ferrous profile cutting where a clean, controlled finish is required.
This blade measures Ø420mm with a 3.8mm cutting width, 3.2mm body thickness, Ø30mm bore and 102 teeth. LEUCO lists HW HL Board 06 cutting material, laser ornaments for noise reduction and burr-free cuts in profiles with low roughness. It is listed for Rapid and Elumatec machine types.
Tight workpiece clamping is required. Confirm machine fitment, bore, pin-hole pattern and application before publishing or ordering. For suitability advice, contact AST on 1300 117 012 or [email protected].
Key Features
- Ø420mm x 3.8mm x Ø30mm, Z102, NL 2/10/70
- Neutral hook angle for controlled cutting in aluminium profiles
- TR-F triple chip/flat tooth geometry
- HW HL Board 06 tungsten carbide cutting material
- Laser ornaments for noise reduction
- Listed for Rapid and Elumatec machine types
Suitable Applications
- Aluminium profile cutting
- Clipping cuts in aluminium profiles
- Mitre cuts in aluminium profiles
- Chop and mitre saw applications
- Table saw applications where machine fitment is confirmed
