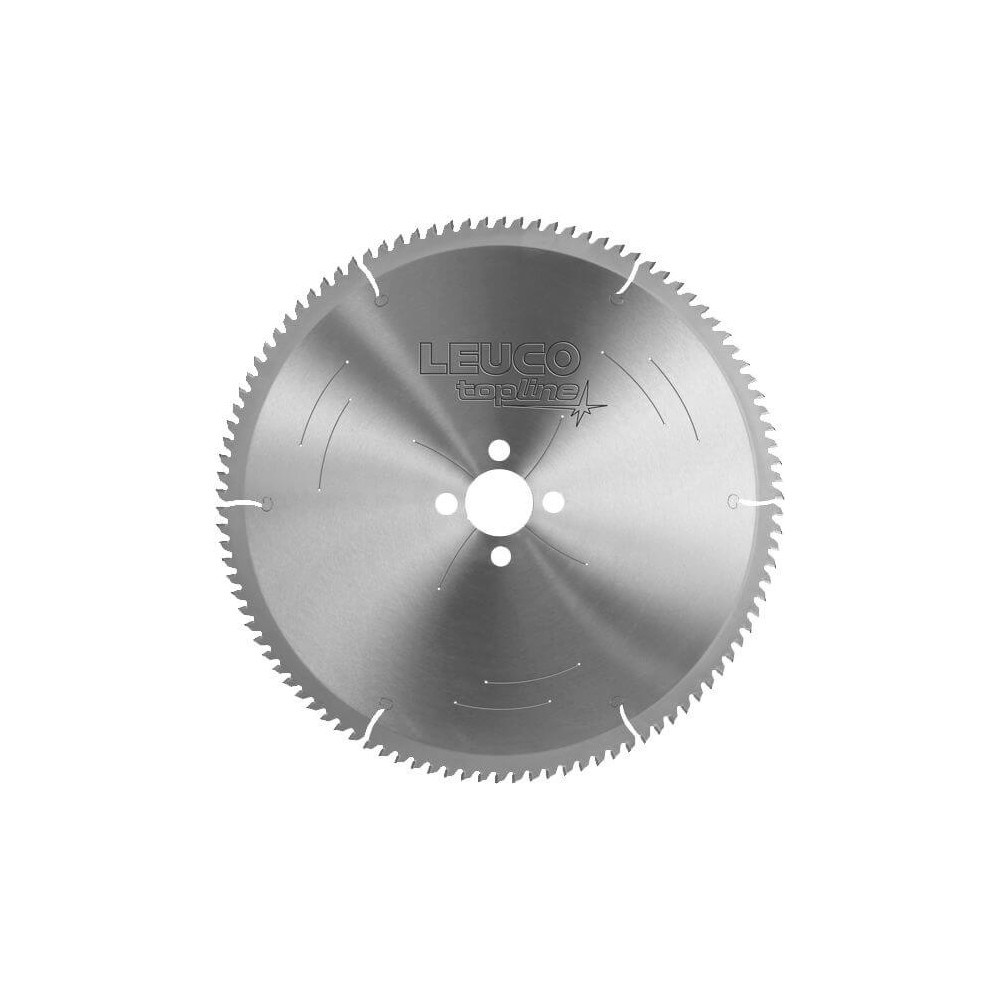

The LEUCO 189076 NF-Chop Saw Blade HW is a 500mm tungsten carbide tipped blade designed for clipping and mitre cuts in aluminium profiles. It uses a neutral 0° hook angle with TR-F triple chip/flat tooth geometry, helping produce burr-free cuts with low surface roughness on profile work.
This blade is specified at Ø500mm x 4.0mm cutting width x Ø32mm bore, with a 3.4mm body thickness, 114 teeth and 2/12/64 pin holes. LEUCO lists it for chop and mitre saws as well as table saws, with Eisele LMS SCA noted as the machine/type reference. Laser ornaments support noise reduction during operation, while LEUCO notes that tight workpiece clamping is required.
Ideal for aluminium fabrication, window and profile cutting, and trade workshops needing a high-tooth-count carbide blade for clean mitre work. Contact AST on 1300 117 012 to confirm suitability for your machine and application.
Key Features
- 500mm diameter, 4.0mm cutting width, 32mm bore and 114 teeth
- TR-F triple chip/flat tooth geometry for aluminium profile cutting
- Neutral 0° hook angle for controlled clipping and mitre cuts
- HW HL Board 06 tungsten carbide cutting material
- Laser ornaments for noise reduction
- Pin holes: 2/12/64
- Machine/type reference: Eisele LMS SCA
Suitable Applications
- Clipping cuts in aluminium profiles
- Mitre cuts in aluminium profiles
- Aluminium window, door and façade profile cutting
- Chop saw, mitre saw and table saw aluminium profile work
