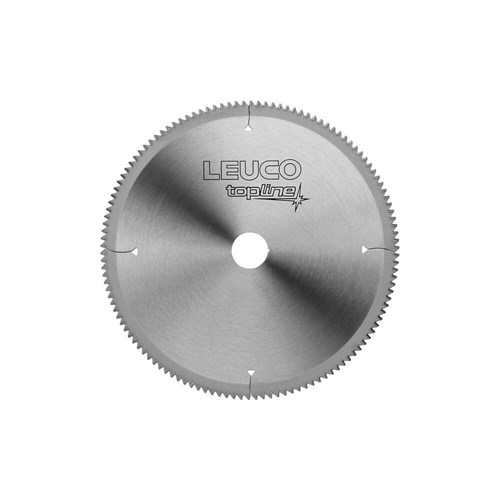

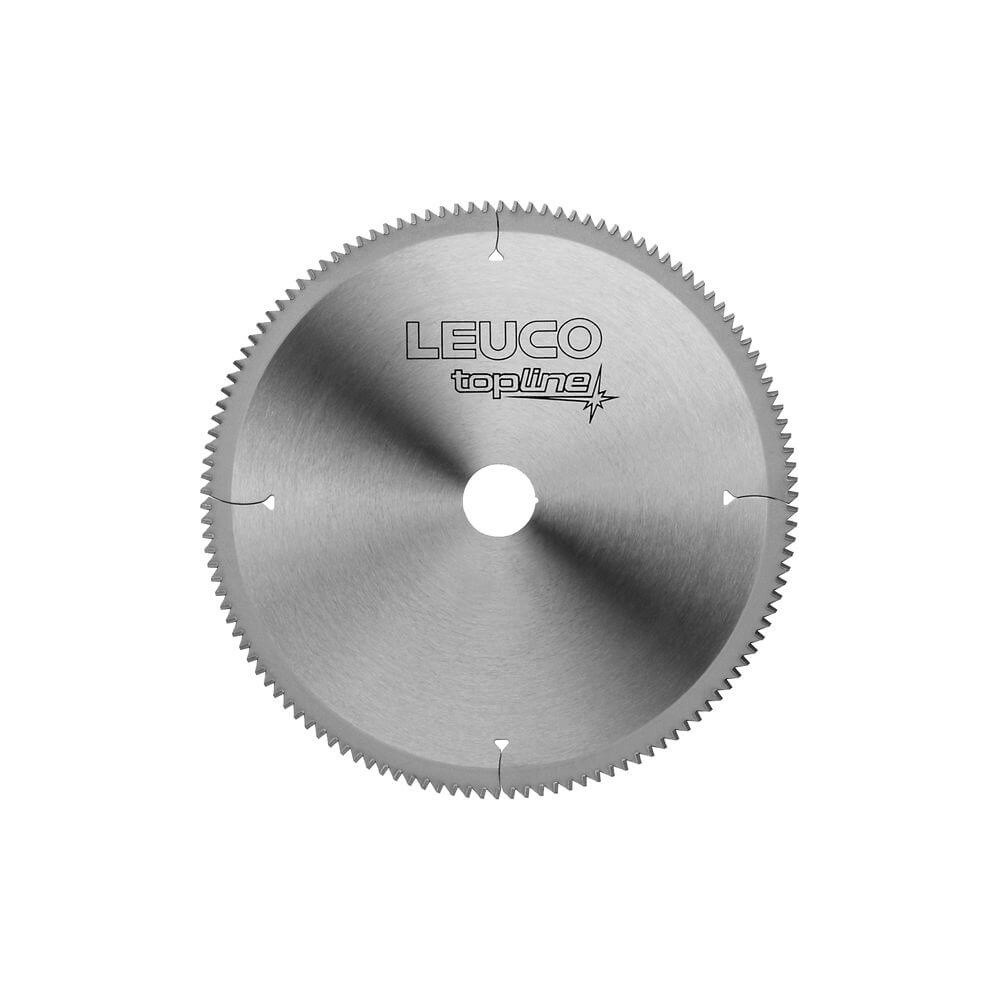

The LEUCO 188388 NF-Chop Saw Blade HW “TR-F” is designed for chop saws and mitre saws used to cross cut thin-walled aluminium and plastic profiles. It features a 200mm cutting diameter, 2.2mm cutting width, 2.0mm body thickness, 30mm bore and 100 teeth.
LEUCO specifies a -6° negative hook angle, TR-F triple-chip/flat tooth configuration and HW HL Board 10 tungsten carbide cutting material. This combination is suited to controlled profile cutting where edge quality and stable cutting action are important. LEUCO lists the advantage as smooth running and no chipping of workpiece edges due to the high tooth count.
Use this blade where the machine, bore, diameter and material application match the job. For suitability checks, replacement advice or sharpening support, contact AST on 1300 117 012.
Key Features
- LEUCO HW tungsten carbide NF-chop saw blade for non-ferrous profile applications.
- TR-F triple-chip/flat tooth geometry for aluminium and plastic profile cutting.
- -6° negative hook angle for controlled cutting on chop and mitre saws.
- Ø200mm diameter, 2.2mm kerf, 2.0mm body, Ø30mm bore, Z100.
- LEUCO catalogue also lists this item under NF-Chop Saw Blades HW “TR-F” on page 1–83.
Suitable Applications
- Cross cutting thin-walled aluminium profiles.
- Cross cutting thin-walled plastic profiles.
- Chop saw and mitre saw profile cutting where Ø200mm x Ø30mm compatibility is confirmed.
