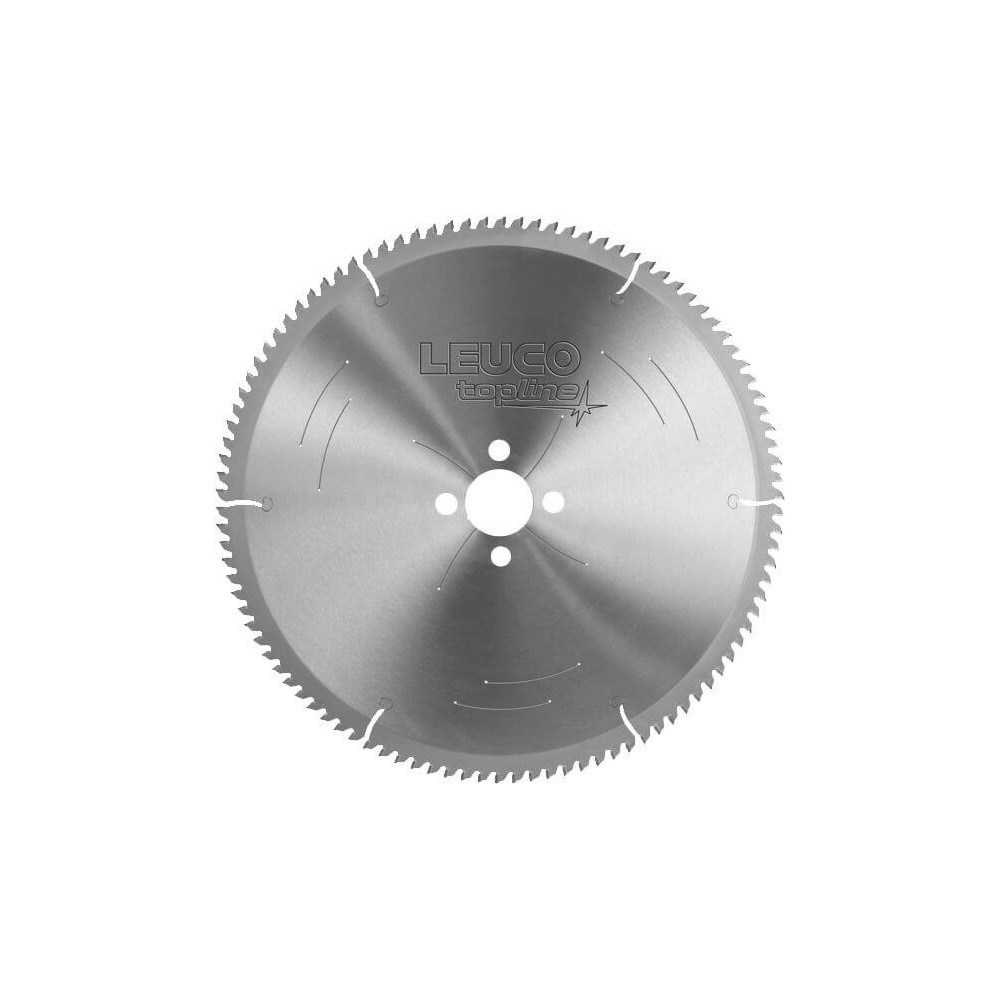

The LEUCO 189075 NF-Chop Saw Blade is a tungsten carbide-tipped aluminium profile blade for trade workshops using chop saws, mitre saws and suitable table saws. With a 500mm diameter, 4.0mm cutting width, 30mm bore and 114 teeth, it is designed for clipping and mitre cuts in aluminium profiles where clean cutting and low roughness are required.
LEUCO specifies a neutral hook angle, TR-F triple chip / flat tooth geometry and HW HL Board 06 cutting material for this blade. The catalogue and product page also note burr-free cuts in profiles with low roughness, plus noise reduction from laser ornaments. Machine fitment is listed for Rapid and Elumatec, with NL 2/10/70 pin holes. Tight workpiece clamping is required, so confirm the saw model, bore, pin-hole pattern and profile type before purchase.
For suitability advice, contact AST on 1300 117 012 or [email protected].
Key Features
- 500mm diameter, 4.0mm cutting width, 30mm bore and 114 teeth.
- Neutral 0° hook angle for aluminium profile cutting.
- TR-F triple-chip/flat tooth geometry.
- HW HL Board 06 tungsten carbide cutting material.
- NL 2/10/70 pin holes; listed for Rapid and Elumatec machines.
- LEUCO notes burr-free cuts with low roughness and noise-reduction from laser ornaments.
Suitable Applications
- Clipping cuts in aluminium profiles.
- Mitre cuts in aluminium profiles.
- Use on compatible chop and mitre saws.
- Use on compatible table saws where machine setup and clamping are suitable.
