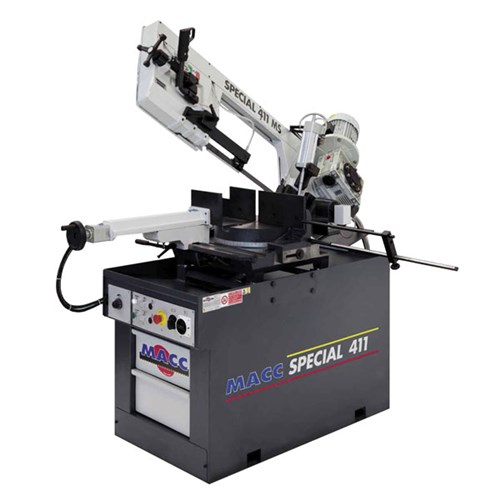

Italian made quality.
Swivel head enables 0° to 60° mitre cuts.
Dual mode operation.
Trigger switch with manual downfeed for small quick cuts.
Control panel with fully adjustable hydraulic down feed & automatic shut-off at end of cut, for cutting larger material.
Dual direction heavy duty vice.
Incorporated recirculating coolant system.
Adjustable material stop for repetitive production.
Comes complete with stand & blade
Specifications:
- Motor: 2HP Three Phase (415V)
- Blade Speed: 2 Speed 38 / 77mpm
- Blade Size: 27mm x 0.9mm x 3200mm
- Weight: 530kg
Capacity:
- 90° Cut: Cylinder: 300mm / Box: 280 x 280mm / Rectangle: 400 x 200mm
- 45° Right Cut: Cylinder: 240mm / Box: 220 x 220mm / Rectangle: 240 x 130mm
- 60° Right Cut: Cylinder: 140mm / Box: 140 x 140mm / Rectangle: 140 x 140mm
- 45° Left Cut: Cylinder: 180mm / Box: 160 x 160mm / Rectangle: 180 x 110mm
