MORSE TAPER REDUCTION SLEEVES

Product Code: MORSETAPRED

ex GST
(Each)
Qty Each (inc GST) Each Save %
Stock Availability
Pack Quantity
1
Increase value Decrease value
Technical Specifications
Brand GROZ
Description

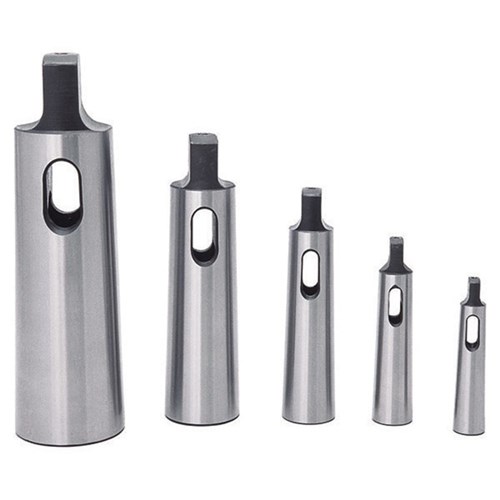

Drill Sleeves are used to adapt smaller morse taper shank tools to larger machine spindles

The cocentricity and taper angles are precisely controlled which allows perfect locking and concentric movement to the tool held. These are available in two types:

A Grade - (Hardened and Ground)

Manufactured from case hardened Hi Tensile steel (20 MnCr5/SAE8620), these are fully hardened and are ground on the inside and outside

Workshop Grade

Manufactured from carbon steel, these are ground on the outside and have a reamed finish on the inside Permanent marking of size on the tang ensures convenience in use

MOUNT LENGTH
DSW/2-1 92mm
DSW/3-1 99mm
DSW/4-1 124mm
DSW/3-2 112mm
DSW/4-2 124mm
DSW/5-2 156mm
DSW/4-3 140mm
DSW/5-3 156mm
DSW/5-4 171mm
DSW/5-1 156mm
