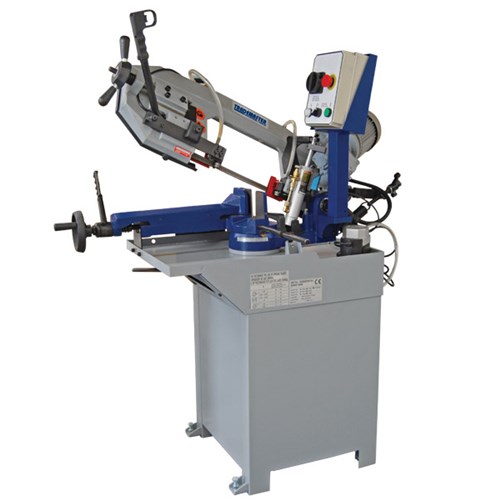

Swivel head enables 0° to 60° mitre cuts.
Dual mode operation.
Trigger switch with manual downfeed for small quick cuts.
Control panel with fully adjustable hydraulic down feed & automatic shut-off at end of cut, for cutting larger material.
Incorporated recirculating coolant system.
Adjustable material stop for repetitive production.
Comes complete with stand & blade
Specifications:
- Motor: 1.0HP Three Phase
- Blade Speed: 2 Speed 40 / 80mpm
- Blade Size: 19mm x 0.9mm x 2110mm
- Bed Height: 895mm
- Weight: 156kg
Cutting capacity:
- 90° - Round: 170mm / Box: 170 x 170mm / Rectagle: 210 x 95mm
- 45° Right - Round: 120mm / Box: 110 x 110mm
- 60° Right - Round: 70mm / Box: 60 x 60mm
