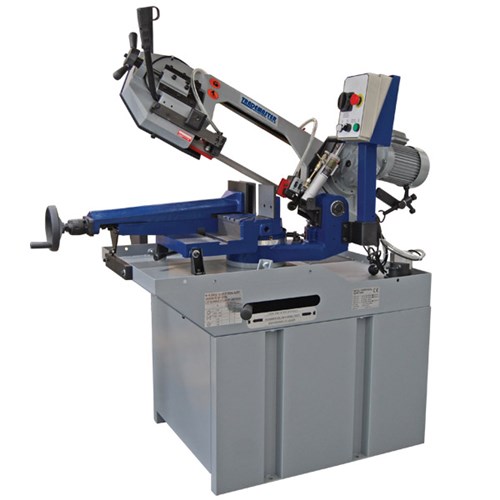

2 Way swivel head enables 0 °to 60° mitre cuts.
Dual mode operation.
Trigger switch with manual downfeed for small quick cuts.
Control panel with fully adjustable hydraulic down feed & automatic shut-off at end of cut, for cutting larger material.
Dual direction heavy duty vice.
Incorporated recirculating coolant system.
Brass chip brush to help prevent blade breakage.
Adjustable material stop for repetitive production.
Comes complete with stand & blade
Specifications:
- Motor: 1.5HP Three Phase
- Blade Speed: 2 Speed 36 / 72mpm
- Blade Size: 27mm x 0.9mm x 2460mm
- Bed Height: 900mm
- Weight: 285kg
Cutting Capacity:
- 90° - Round: 227mm / Box: 220 x 220mm / Rectangle: 260 x 110mm
- 45° Right - Round: 150mm / Box: 145 x 145mm / Rectangle: 200 x 125mm
- 60° Right - Round: 90mm / Box: 85 x 85mm
- 45° Left - Round: 110mm / Box: 110 x 110mm / Rectangle: 160 x 110mm
Freight for this product will not be calculated at checkout. An AusTech Saw & Tooling representative will contact you to discuss freight options following your order being placed.
