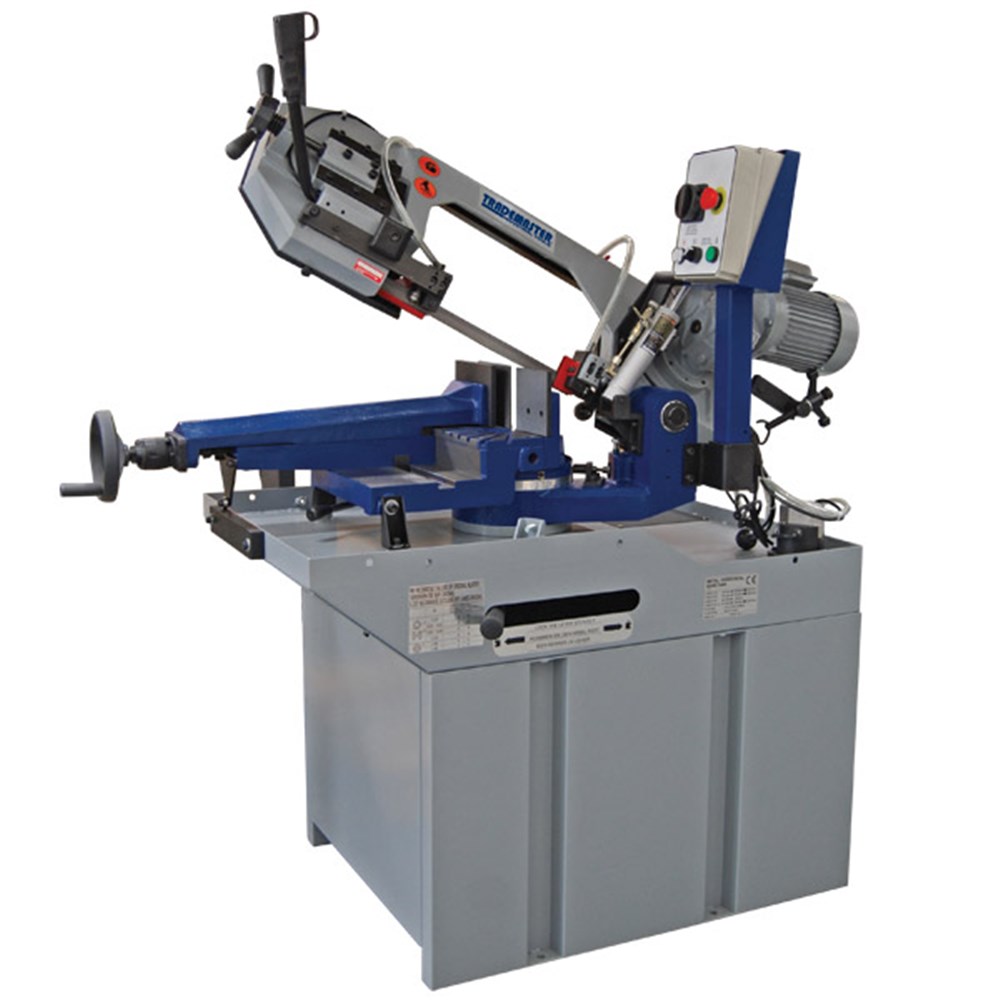

2 Way swivel head enables 0 °to 60° mitre cuts
Variable speed motor for cutting a wide range of materials
Dual mode operation:
Trigger switch with manual downfeed for small quick cuts
Control panel with fully adjustable hydraulic down feed
Automatic shut-off at end of cut, for cutting larger material
Dual direction heavy duty vice
Incorporated recirculating coolant system
Brass chip brush to help prevent blade breakage
Adjustable material stop for repetitive production
Comes complete with stand & blade
Optional blade tension gauge available.
Specifications:
- Motor: 1.5HP Single Phasee
- Blade Speed: Variable 20-85 mpm
- Blade Size: 27mm x 0.9mm x 2460mm
- Bed Height: 900mm
- Weight: 285kg
Cutting capacity:
- 90° - Round: 227mm / Box: 220 x 220mm / Rectangle: 260 x 110mm
- 45° Right - Round: 150mm / Box: 145 x 145mm / Rectangle: 200 x 125mm
- 60° Right - Round: 90mm / Box: 85 x 85mm
- 45° Left - Round: 110mm / Box: 110 x 110mm / Rectangle: 160 x 110mm
Freight for this product will not be calculated at checkout. An AusTech Saw & Tooling representative will contact you to discuss freight options following your order being placed.
