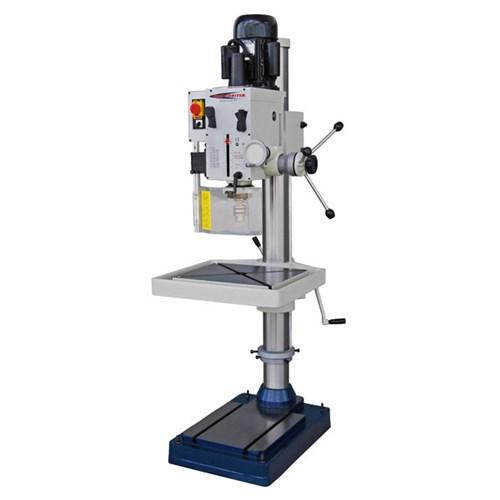

TRADEMASTER GEARED HEAD DRILL, 4MT, 415V 3 PHASE

Product Code: TGD400-3

Price-Match
P.O.A.
(Each)
Stock Availability
Available to Order
Pack Quantity
1
Increase value Decrease value

Downloads

Description
  • Quality precision machine for drilling & tapping.
  • No. 4 Morse taper spindle.
  • 1120W motor, three phase.
  • Micro feed precision.
  • Geared head tilts 90° right & left.
  • Forward and reverse operation.
  • Accessories include arbor, 16mm drill chuck, drill sleeves
  • Max Drilling Capacity: 40mm
  • Spindle Taper: 4MT
  • Spindle Nose To Base: 1180mm
  • Spindle Nose To Table: 715mm
  • Spindle To Column: 272.5mm
  • Diameter Of Column: 115mm
  • Spindle Travel: 120mm
  • Swing: 660mm
  • Spindle Speeds: (rpm) 75, 170, 280, 540, 960, 1600
  • Table Dimensions: 540 x 470mm
  • Overall Height: 1770mm
  • Base Dimensions: 650 x 450mm
  • N.W. / G.W.: 320 / 370kg
  • Shipping Dimensions: 740 x 720 x 1830mm
Freight for this product will not be calculated at checkout. An AusTech Saw & Tooling representative will contact you to discuss freight options following your order being placed.
