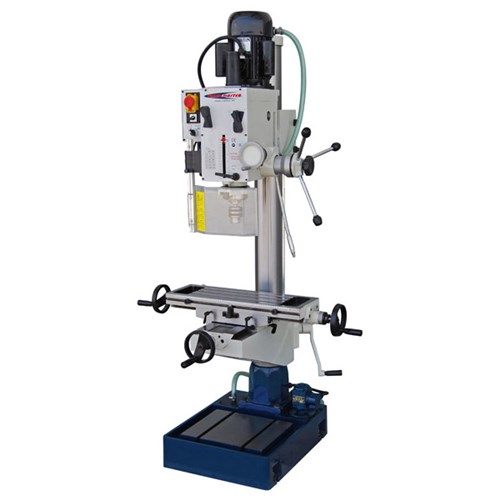

TRADEMASTER GEARED HEAD MILL DRILL WITH COOLANT, 4MT, 415V 3 PHASE

Product Code: TGMD400-3

Price-Match
P.O.A.
(Each)
Stock Availability
Available to Order
Pack Quantity
1
Increase value Decrease value

Downloads

Description
  • Quality precision machine for drilling, milling & tapping.
  • No. 4 Morse taper spindle.
  • 1120W motor, three phase.
  • Micro feed precision.
  • Geared head tilts 90° right & left.
  • Forward and reverse operation.
  • Recirculating coolant system.
  • Accessories include arbor, draw bar, milling chuck, 16mm drill chuck, drill sleeves

  • Max Drilling Capacity: 40mm
  • Spindle Taper: MT4
  • Spindle Nose To Base: 1180mm
  • Spindle Nose To Table: 610mm
  • Spindle To Column: 272.5mm
  • Diameter Of Column: 115mm
  • Quill Travel: 120mm
  • Swing: 660mm
  • Spindle Speeds (rpm): 75, 170, 280, 540, 960, 1600
  • Table Surface: 600 x 190mm
  • Cross Travel: 190mm
  • Longitude Travel: 370mm
  • Overall Height: 1770mm
  • Base Dimensions: 650 x 450mm
  • N.W. / G.W.: 340 / 390kg
  • Shipping Dimensions: 820 x 720 x 1830mm

Freight for this product will not be calculated at checkout. An AusTech Saw & Tooling representative will contact you to discuss freight options following your order being placed.
