HOLEMAKER PRO75 SWIVEL BASE REVERSIBLE MAGNETIC DRILL. 240V. 3MT. CAP: 75MM DIA X 75MM

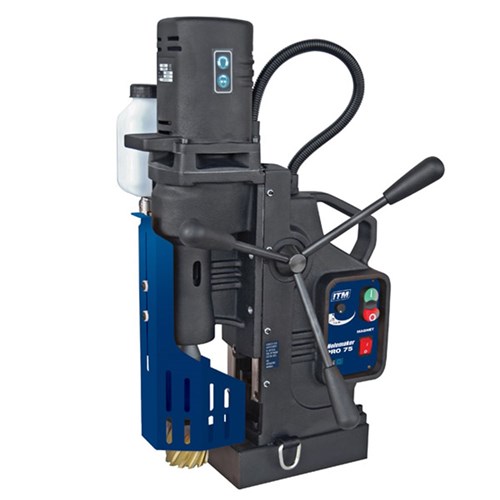

The Holemaker PRO 75 is a versatile, multi-purpose machine, equipped with a No. 3 Morse Taper spindle. The 2 speed gearbox with electronic variable speed, Electronic Speed Stabilization System (ESSS), and motor soft start feature makes this machine ideal for tapping up to M24. With a large cutting capacity of 75mm diameter and 110mm depth using Holemaker cutters, this machine will suffice for most holemaking requirements. Other standard features include gravity feed coolant system & left or right hand feed handle operation. The unique semi-automatic gib adjustment system enables simple, fast and always correct fine tuning without any expert knowledge or experience.

The Holemaker Pro 75SR is as per the standard Holemaker Pro 75, but with the two additions of a swivel base system and jog reverse function. The swivel base system makes it easier to move the machine into the correct position for drilling.

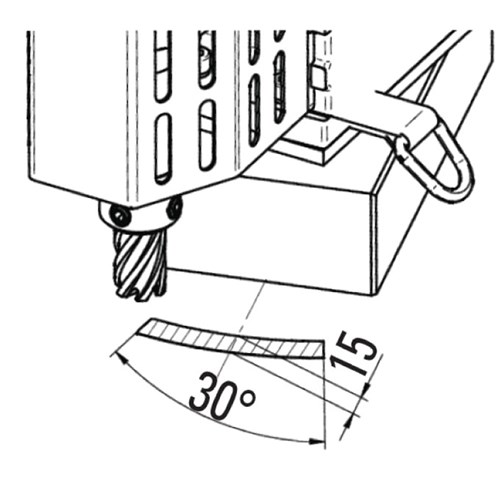

Once the drill has been fixed to the workpiece with the magnet, it can then be moved back and forward 15mm, or swivelled left and right 30º, and is then fastened into position with one socket head bolt.

The combination of the variable speed, jog reverse function, and the swivel base system, makes this a very versatile machine that is ideal for tapping.

Supplied complete with arbor for use with Holemaker cutters up to 75mm depth of cut (3/4" shank). Optional arbor to take Holemaker cutters up to 110mm depth of cut (1-1/2" shanks) is also available.


Capacity ( Diameter ): 75mm
Capacity ( Depth ): 110mm
Capacity ( Twist Drill ): #3 Morse Taper 32mm
Motor Power: 1650 watt
Input Power: 1800 watt Single Phase 240V
Gearbox: 2 Speed Gearbox With Electronic Variable Speed And Motor Soft Start Feature 80-160; 210-420rpm
Weight: 27.0kg
Magnetic Dead Lift: 19500Nm On 25mm Steel Plate
Stroke: 214mm
Height: 525mm min / 739mm max
Swivel Base & Reverse
Through Spindle Coolant System
Smart Magnet Technology To Ensure Sufficient Magnetic Adhesion
Supplied In Metal Carry Case With Cutter Guard & Safety Strap
