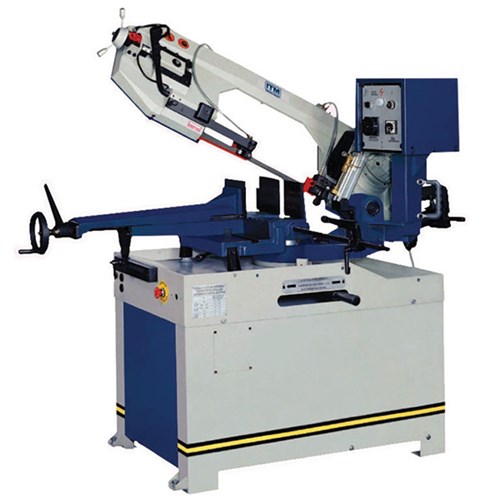

  • ITM WE350DS BANDSAW, 260MM CAP, SWIVEL HEAD, DUAL MITRE, 2 SPEED 415V 3PH, HYD DOWN FEED

ITM WE350DS BANDSAW, 260MM CAP, SWIVEL HEAD, DUAL MITRE, 2 SPEED 415V 3PH, HYD DOWN FEED

Product Code: WE350DS

P.O.A. ex GST
(Each)
Qty Each (inc GST) Each Save %
Stock Availability
Available to Order
Pack Quantity
1
Increase value Decrease value
Description

ITM WE350DS BANDSAW, 260MM CAP, SWIVEL HEAD, DUAL MITRE, 2 SPEED 415V 3PH, HYD DOWN FEED

  • 2-way swivel head enables from 0° to 60° mitre cuts.
  • Dual mode operation.
    • - Trigger switch with manual down feed for small quick cuts.
    • - Control panel with fully adjustable hydraulic down feed & automatic shut-off at end of cut, for cutting larger material.
  • Dual direction heavy-duty vice.
  • Hydraulic blade tension gauge.
  • Incorporated recirculating coolant system.
  • Brass chip brush to help prevent blade breakage.
  • Adjustable material stop for repetitive production.
  • Safety emergency stop switch.
  • Comes complete with stand & blade.
  • Made in Taiwan.
Features
  • Motor: 2.0hp Three Phase (415V)
  • Blade Speed: 2 Speed 34 / 68mpm
  • Blade Size: 27mm x 0.9mm x 3160mm
  • Bed Height: 890mm
  • Weight: 410kg

90° Cutting Capacity:
  • Round: 260mm
  • Square: 260mm
  • Rectangle: 350 x 250mm

45° Right Cutting Capacity:
  • Round: 230mm
  • Square: 165mm
  • Rectangle: 240 x 110mm

60° Right Cutting Capacity:
  • Round: 150mm
  • Square: 90mm
  • Rectangle: 150 x 90mm

45° Left Cutting Capacity:
  • Round: 200mm
  • Square: 170mm
  • Rectangle: 260 x 60mm
